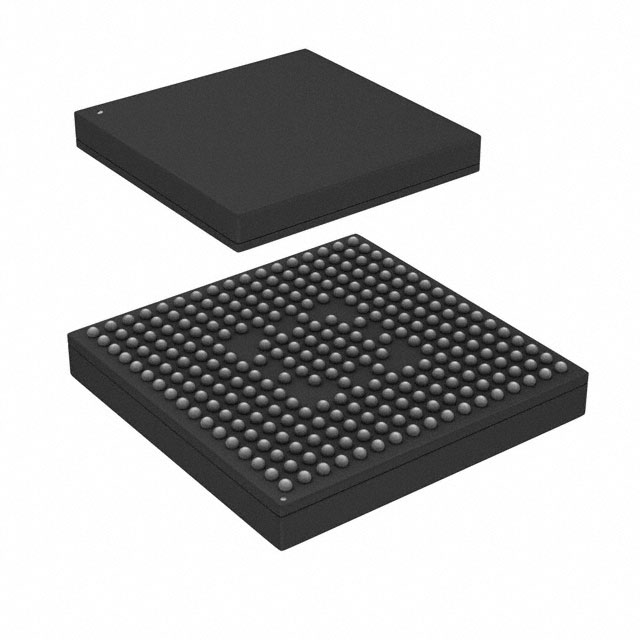

MCIMX6Y2CVK08AB
IC MPU I.MX6 792MHZ 272MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. i.MX6 series MCIMX6Y2CVK08AB is a single-core, 32-bit ARM Cortex-A7 microprocessor operating at 792MHz. This component features a 272-MAPBGA (9x9) package and supports LPDDR2, DDR3, and DDR3L RAM controllers. Integrated interfaces include CANbus, I2C, SPI, and UART, along with dual 10/100Mbps Ethernet ports and dual USB 2.0 OTG with PHY. The device also incorporates a Multimedia co-processor with NEON MPE, and display interface controllers for Electrophoretic and LCD technologies. Security features include A-HAB, ARM TZ, CSU, SJC, and SNVS. This processor is suitable for applications in industrial automation, automotive, and consumer electronics, and operates within an extended temperature range of -40°C to 105°C (TJ).
Additional Information
Series: i.MX6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 272-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 792MHz |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | 1.8V, 2.8V, 3.3V |
| Supplier Device Package | 272-MAPBGA (9x9) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | Electrophoretic, LCD |
| Security Features | A-HAB, ARM TZ, CSU, SJC, SNVS |
| SATA | - |
| Additional Interfaces | CANbus, I2C, SPI, UART |
Request a Quote
