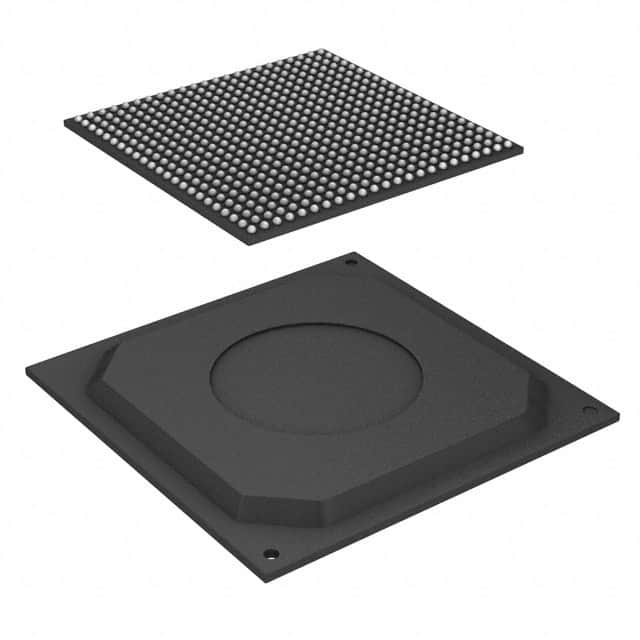

MCIMX6X4AVM08ABR
IC MPU I.MX6SX 800MHZ 529MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6SX series microprocessor, part number MCIMX6X4AVM08ABR. This dual-core, 32-bit device features ARM Cortex-A9 and ARM Cortex-M4 cores, operating at 800MHz and 200MHz respectively. It includes multimedia capabilities with NEON™ MPE co-processors and offers extensive peripheral support including multiple Ethernet ports (10/100/1000Mbps), dual USB 2.0 interfaces with PHY, and a comprehensive set of serial interfaces such as I2C, SPI, UART, and I2S. The controller also supports advanced display interfaces like LCD and LVDS, along with RAM controllers for LPDDR2, LVDDR3, and DDR3. Enhanced security features include A-HAB, ARM TZ, CAAM, and SNVS. This component is designed for surface mount installation in a 529-MAPBGA package and operates within an extended temperature range of -40°C to 125°C (TJ). Its robust feature set makes it suitable for demanding applications in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: i.MX6SXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 529-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz, 800MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9, ARM® Cortex®-M4 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.15V |
| Supplier Device Package | 529-MAPBGA (19x19) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD, LVDS |
| Security Features | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE |
| SATA | - |
| Additional Interfaces | AC'97, CAN, I2C, I2S, MLB, MMC\/SD\/SDIO, PCIe, SAI, SPDIF, SPI, SSI, UART, VADC |
