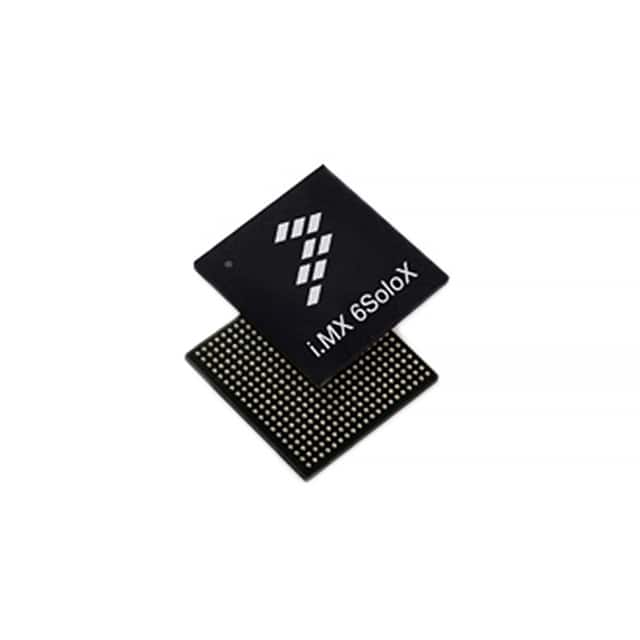

MCIMX6X2EVN10ABR
IC MPU I.MX6SX 1GHZ 400MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6SX series microprocessor, part number MCIMX6X2EVN10ABR, features a dual-core ARM Cortex-A9 and ARM Cortex-M4 architecture. This 32-bit processor operates at speeds up to 1GHz, with the Cortex-M4 core at 227MHz. It is housed in a 400-MAPBGA (17x17) package and supports LPDDR2, LVDDR3, and DDR3 RAM controllers. Connectivity options include dual 10/100/1000Mbps Ethernet ports, multiple USB 2.0 interfaces (including OTG), and a comprehensive set of peripherals such as AC'97, CAN, I2C, I2S, MMC/SD/SDIO, PCIe, SAI, SPDIF, SPI, SSI, and UARTs. Graphics acceleration is integrated, along with dedicated display and interface controllers for Keypad and LCD. Security features include A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, and TVDECODE. This component is suitable for applications in industrial automation, automotive, and consumer electronics. The operating temperature range is -20°C to 105°C (TJ).
Additional Information
Series: i.MX6SXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 400-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 227MHz, 1GHz |
| Operating Temperature | -20°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A9, ARM® Cortex®-M4 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.15V |
| Supplier Device Package | 400-MAPBGA (17x17) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE |
| SATA | - |
| Additional Interfaces | AC'97, CAN, I2C, I2S, MMC\/SD\/SDIO, PCIe, SAI, SPDIF, SPI, SSI, UART |
