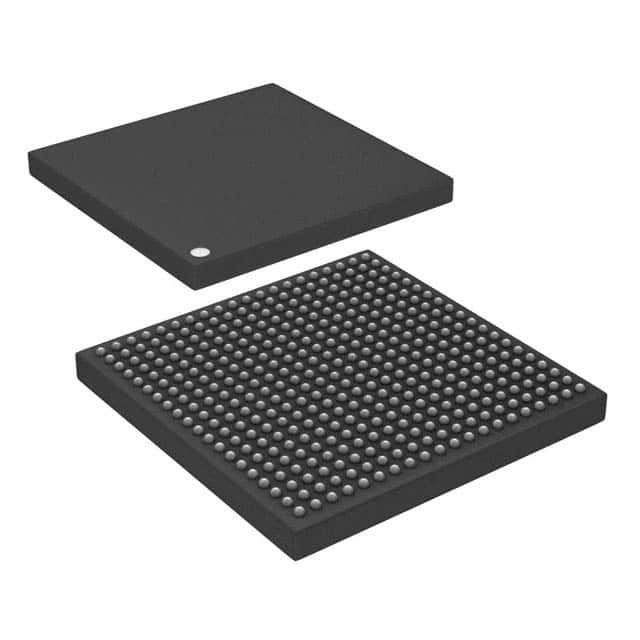

MCIMX6X1EVO10AB
IC MPU I.MX6SX 1GHZ 400MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. i.MX6SX series MCIMX6X1EVO10AB is a powerful microprocessor featuring a dual-core ARM® Cortex®-A9 and ARM® Cortex®-M4 architecture. This 32-bit processor operates at speeds up to 1GHz for the Cortex-A9 core and 227MHz for the Cortex-M4 core. The MCIMX6X1EVO10AB is housed in a 400-MAPBGA (17x17) package, suitable for surface mounting. It supports LPDDR2, LVDDR3, and DDR3 RAM controllers. Connectivity is extensive, including dual 10/100/1000Mbps Ethernet ports, multiple USB 2.0 interfaces (including OTG), and a wide array of serial interfaces such as AC'97, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, and UART. The processor includes advanced multimedia capabilities with NEON™ MPE co-processors and a dedicated keypad and LCD controller. Security features are robust, incorporating A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, and TVDECODE. Operating across a temperature range of -20°C to 105°C (TJ), this component finds application in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: i.MX6SXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 400-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 227MHz, 1GHz |
| Operating Temperature | -20°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A9, ARM® Cortex®-M4 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.15V |
| Supplier Device Package | 400-MAPBGA (17x17) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | No |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE |
| SATA | - |
| Additional Interfaces | AC'97, CAN, I2C, I2S, MMC\/SD\/SDIO, SAI, SPDIF, SPI, SSI, UART |
