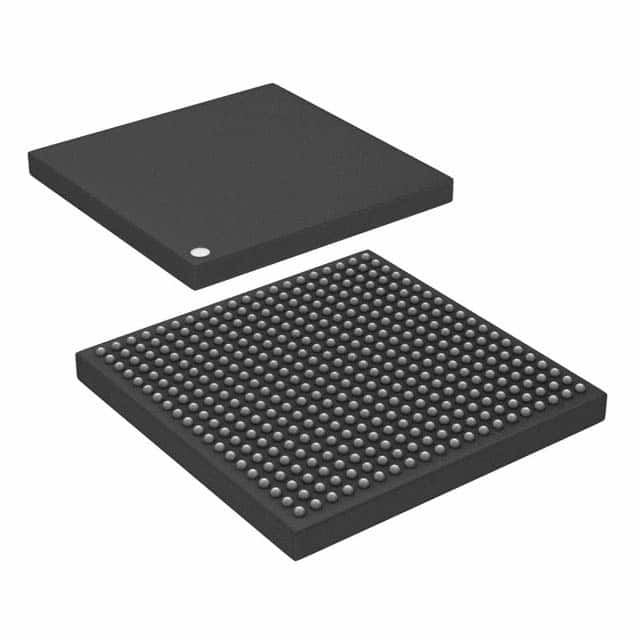

MCIMX6X1CVO08AB
IC MPU I.MX6SX 800MHZ 400MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6SX series microprocessor, part number MCIMX6X1CVO08AB. This component features a dual-core architecture with an ARM Cortex-A9 running up to 800MHz and an ARM Cortex-M4 coprocessor at 200MHz. The 32-bit processor is housed in a 400-MAPBGA (17x17) package with surface mount technology. It supports LPDDR2, LVDDR3, and DDR3 RAM controllers. Connectivity options include dual 10/100/1000Mbps Ethernet ports, multiple USB 2.0 interfaces (including OTG with PHY), I2C, SPI, UART, CAN, and audio interfaces like AC'97, I2S, SAI, and SPDIF. Graphics and display control is managed via integrated Keypad and LCD controllers. Security features include A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, and TVDECODE. This device operates within an ambient temperature range of -40°C to 105°C. It finds application in industrial automation, automotive, and advanced human-machine interfaces.
Additional Information
Series: i.MX6SXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 400-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz, 800MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | ARM® Cortex®-A9, ARM® Cortex®-M4 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.15V |
| Supplier Device Package | 400-MAPBGA (17x17) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | No |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE |
| SATA | - |
| Additional Interfaces | AC'97, CAN, I2C, I2S, MMC\/SD\/SDIO, SAI, SPDIF, SPI, SSI, UART |
