MCIMX6X1AVO08AB

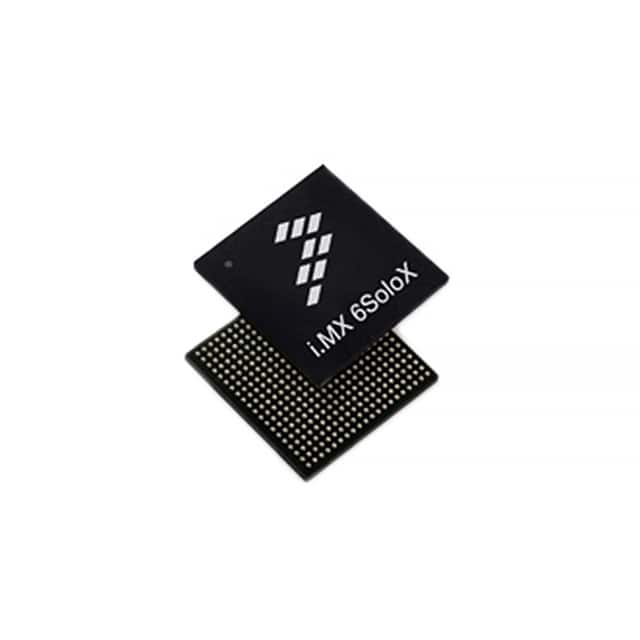

IC MPU I.MX6SX 800MHZ 400MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6SX series microprocessor, part number MCIMX6X1AVO08AB, is a dual-core 32-bit processor featuring ARM® Cortex®-A9 and ARM® Cortex®-M4 cores. This device operates at clock speeds up to 800MHz for the Cortex-A9 and 200MHz for the Cortex-M4. It is housed in a 400-MAPBGA (17x17) package and supports surface mount installation.
The MCIMX6X1AVO08AB integrates multimedia processing capabilities with NEON™ MPE co-processors and includes extensive peripheral support. Key interfaces include AC'97, CAN, multiple I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, and UART controllers. Networking is facilitated by dual 10/100/1000Mbps Ethernet ports. Display and interface control is provided via keypad and LCD controllers. Memory support encompasses LPDDR2, LVDDR3, and DDR3 RAM. Security features are robust, with A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, and TVDECODE. The component operates within an extended temperature range of -40°C to 125°C (TJ) and offers flexible I/O voltage support from 1.8V to 3.15V. USB connectivity includes USB 2.0 with PHY and dual USB 2.0 OTG with PHY. This component finds application in industrial automation, automotive infotainment, and consumer electronics.
Additional Information
Series: i.MX6SXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 400-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz, 800MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9, ARM® Cortex®-M4 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.15V |
| Supplier Device Package | 400-MAPBGA (17x17) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | No |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE |
| SATA | - |
| Additional Interfaces | AC'97, CAN, I2C, I2S, MMC\/SD\/SDIO, SAI, SPDIF, SPI, SSI, UART |
