MCIMX6X1AVK08AC
IC MPU I.MX6SX 800MHZ 400MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

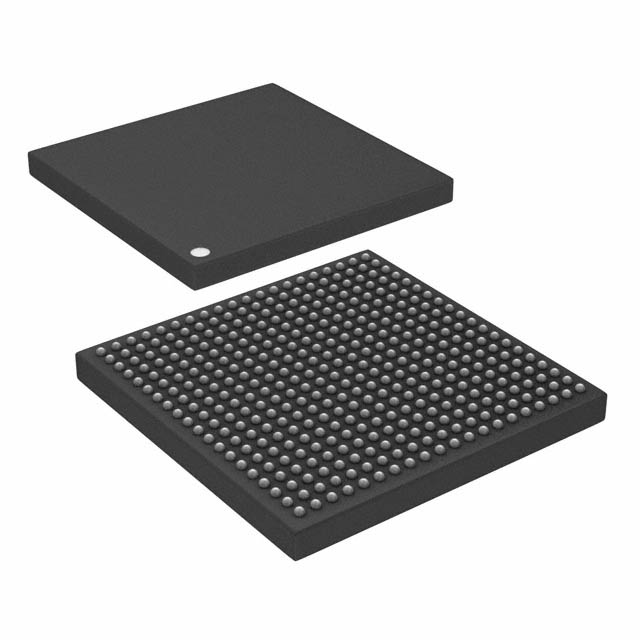

NXP USA Inc. i.MX6SX series microprocessor, part number MCIMX6X1AVK08AC, is a dual-core 32-bit processor featuring ARM® Cortex®-A9 and ARM® Cortex®-M4 cores. This component operates at speeds up to 800MHz for the Cortex-A9 and 200MHz for the Cortex-M4, with NEON™ MPE multimedia co-processors. It is housed in a 400-MAPBGA (14x14) package for surface mounting and supports LPDDR2, LVDDR3, and DDR3 RAM controllers.
The MCIMX6X1AVK08AC offers extensive connectivity options including dual 10/100/1000Mbps Ethernet ports, multiple USB 2.0 interfaces with PHY, and various serial interfaces such as CAN, I2C, SPI, UART, and I2S. Display and interface controllers for Keypad and LCD are integrated, alongside AC'97 and SPDIF audio interfaces. Security features include A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, and TVDECODE. This microprocessor is suitable for applications in industrial automation, automotive infotainment, and consumer electronics, operating within an ambient temperature range of -40°C to 125°C (TJ).
Additional Information
Series: i.MX6SXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 400-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz, 800MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9, ARM® Cortex®-M4 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.15V |
| Supplier Device Package | 400-MAPBGA (14x14) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | No |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE |
| SATA | - |
| Additional Interfaces | AC'97, CAN, I2C, I2S, MMC\/SD\/SDIO, SAI, SPDIF, SPI, SSI, UART |
