MCIMX6S8DVM10AB
IC MPU I.MX6S 1.0GHZ 624MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

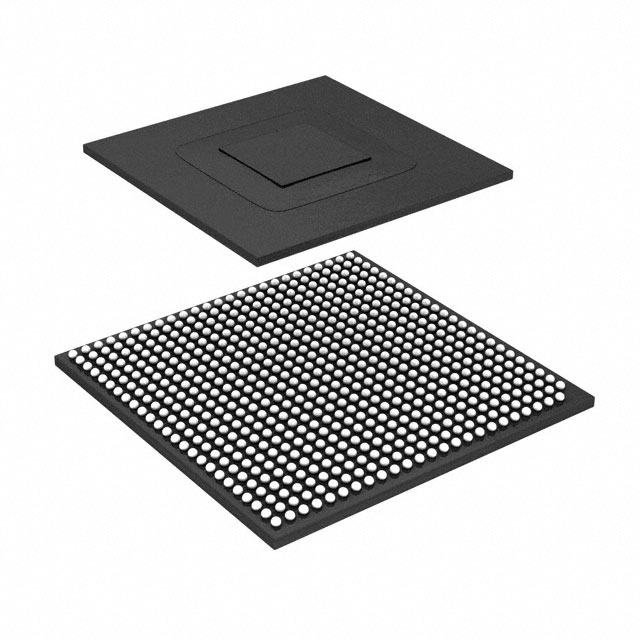

ARM® Cortex®-A9 Microprocessor IC i.MX6S 1 Core, 32-Bit 1.0GHz 624-MAPBGA (21x21)
Additional Information
Series: i.MX6SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 624-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-MAPBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (4) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | - |
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
