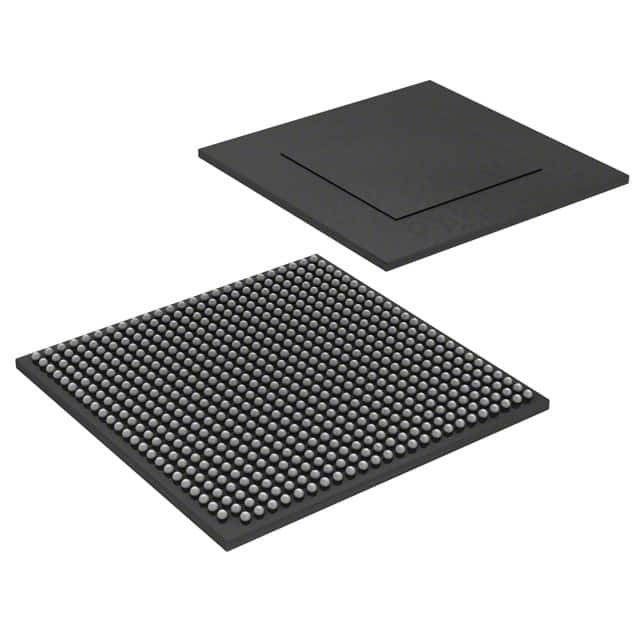

MCIMX6Q6AVT10ADR
IC MPU I.MX6Q 1.0GHZ 624FCBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6Q series ARM® Cortex®-A9 microprocessor, part number MCIMX6Q6AVT10ADR, is a quad-core, 32-bit processing unit operating at 1.0GHz. This component features a 624-FCBGA (21x21) package for surface mounting and is supplied in Tape & Reel (TR). It integrates multimedia co-processors with NEON™ SIMD acceleration and includes display and interface controllers for Keypad and LCD. Connectivity options are extensive, encompassing multiple USB 2.0 ports with PHY, 10/100/1000Mbps Ethernet, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART interfaces, alongside SATA 3Gbps. RAM controllers support LPDDR2, LVDDR3, and DDR3 memory. Security features include ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, and Secure RTC. This microprocessor is utilized in industrial automation, automotive infotainment, and consumer electronics applications.
Additional Information
Series: i.MX6QRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 624-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (4) |
| Number of Cores/Bus Width | 4 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
