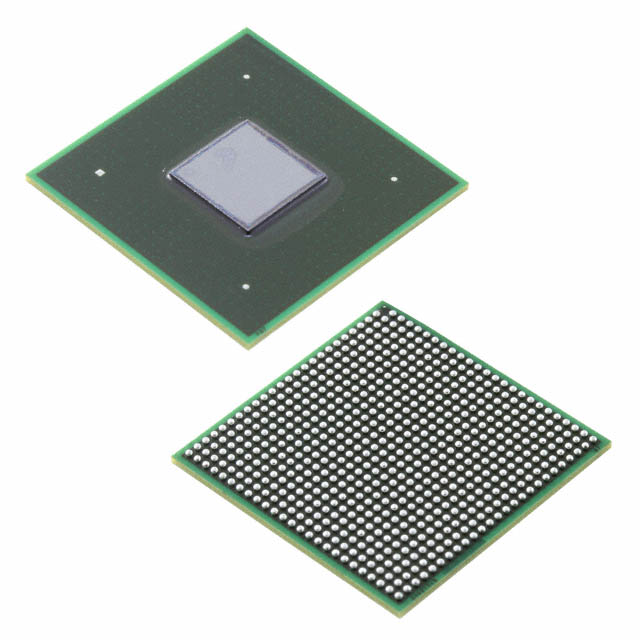

MCIMX6Q5EYM10ACR
IC MPU I.MX6Q 1.0GHZ 624FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6Q series ARM® Cortex®-A9 Quad-Core microprocessor, part number MCIMX6Q5EYM10ACR. This 32-bit microprocessor operates at 1.0GHz and features a 624-FCPBGA (21x21) package. It includes multimedia co-processors with NEON™ SIMD capabilities and offers extensive interfaces such as CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART. The device integrates 10/100/1000Mbps Ethernet, SATA 3Gbps, and four USB 2.0 ports with PHY. Graphics acceleration is supported, along with display and interface controllers for Keypad and LCD. RAM controllers for LPDDR2, LVDDR3, and DDR3 are included. Security features encompass ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, and Secure RTC. This component is suitable for applications in industrial automation, automotive infotainment, and consumer electronics. It is supplied in Tape & Reel (TR) packaging and operates within a temperature range of -20°C to 105°C (TJ).
Additional Information
Series: i.MX6QRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 624-LFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -20°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCPBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (4) |
| Number of Cores/Bus Width | 4 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
