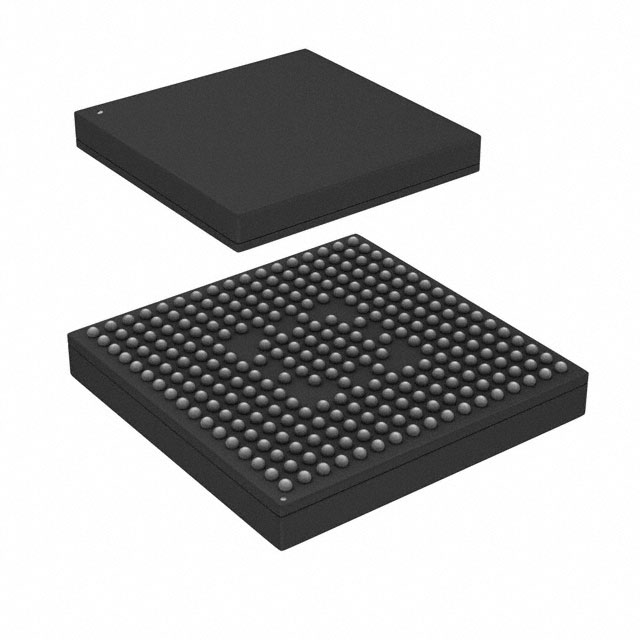

MCIMX6G3DVK05AB
IC MPU I.MX6UL 528MHZ 272MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
ARM® Cortex®-A7 Microprocessor IC i.MX6UL 1 Core, 32-Bit 528MHz 272-MAPBGA (9x9)
Additional Information
Series: i.MX6ULRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 272-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 528MHz |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 272-MAPBGA (9x9) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, LVDS |
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS |
| SATA | - |
| Additional Interfaces | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, UART |
Request a Quote
