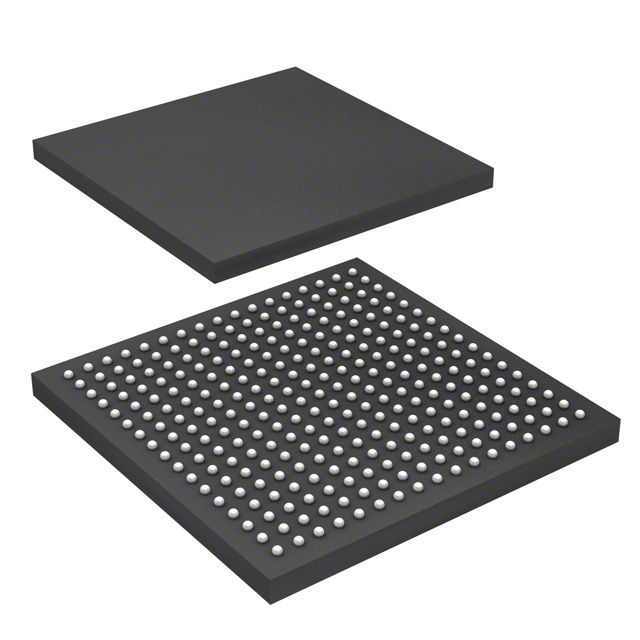

MCIMX6G2CVM05AA
IC MPU I.MX6UL 528MHZ 289MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. i.MX6UL series MCIMX6G2CVM05AA is a high-performance ARM Cortex-A7 microprocessor. This 32-bit, single-core processor operates at 528MHz, featuring a 289-MAPBGA (14x14) package suitable for surface mount applications. It supports LPDDR2, DDR3, and DDR3L RAM controllers and includes multiple peripheral interfaces such as CAN, I2C, SPI, UART, and dual Ethernet ports (10/100Mbps). The device also incorporates USB 2.0 with PHY, LCD and LVDS display controllers, and advanced security features including ARM TrustZone, A-HAB, CAAM, CSU, SJC, and SNVS. Operating within a junction temperature range of -40°C to 105°C, this component is well-suited for industrial automation, automotive, and consumer electronics applications.
Additional Information
Series: i.MX6ULRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 528MHz |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 289-MAPBGA (14x14) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, LVDS |
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS |
| SATA | - |
| Additional Interfaces | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, UART |
