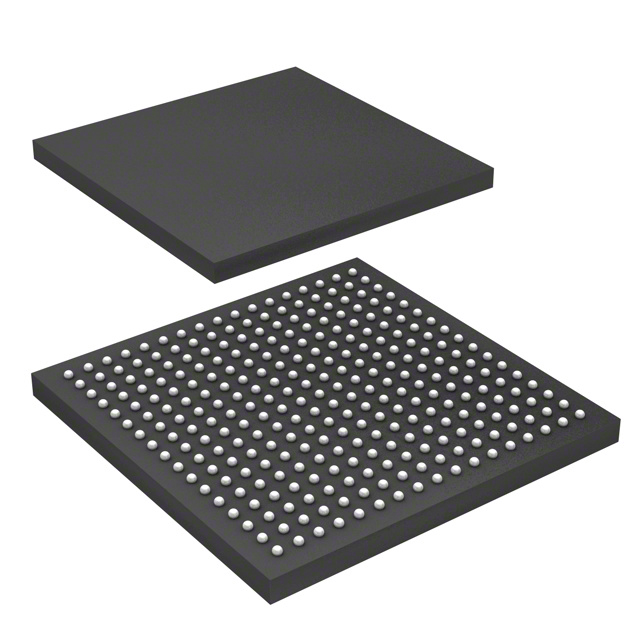

MCIMX6G2AVM05AA
IC MPU I.MX6UL 528MHZ 289MAPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6UL series microprocessor, part number MCIMX6G2AVM05AA, is a 32-bit, single-core ARM Cortex-A7 processor operating at 528MHz. This component is housed in a 289-MAPBGA (14x14) package, suitable for surface mount applications. It supports LPDDR2, DDR3, and DDR3L RAM controllers and offers extensive peripheral connectivity including CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, and UART interfaces. For networking, it includes dual 10/100Mbps Ethernet ports and dual USB 2.0 ports with PHY. Display and interface control is provided by an LCD and LVDS controller. Security features include ARM TZ, A-HAB, CAAM, CSU, SJC, and SNVS. The MCIMX6G2AVM05AA is designed for operation across a wide temperature range of -40°C to 125°C (TJ), making it suitable for industrial, automotive, and consumer electronics applications.
Additional Information
Series: i.MX6ULRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 528MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 289-MAPBGA (14x14) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, LVDS |
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS |
| SATA | - |
| Additional Interfaces | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, UART |
