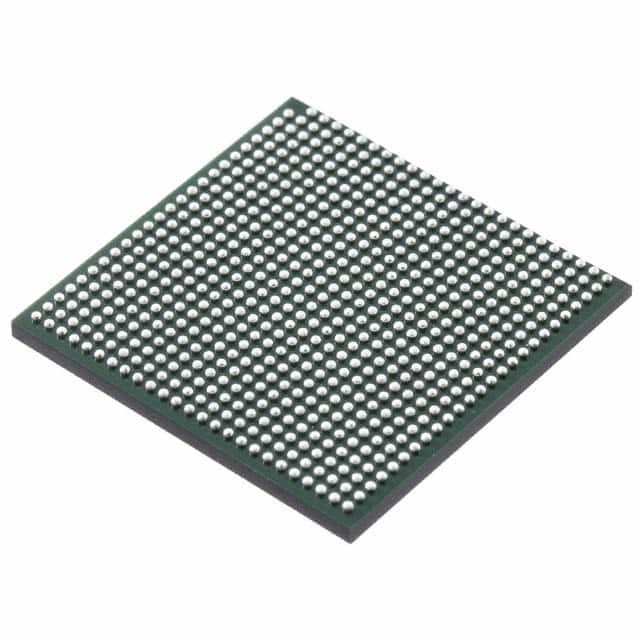

MCIMX6DP4AVT1ABR
IC MPU I.MX6DP 1.0GHZ 624FCBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6DP series MCIMX6DP4AVT1ABR is a dual-core, 32-bit ARM Cortex-A9 microprocessor operating at 1.0GHz. This component features a 624-FCBGA (21x21) package, suitable for surface mount applications. It boasts multimedia processing capabilities with NEON™ SIMD, and includes graphics acceleration. Connectivity options are extensive, with support for CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, S/PDIF, and UART interfaces. Display support includes HDMI, Keypad, LCD, LVDS, MIPI/DSI, and Parallel interfaces. Networking is enabled via 10/100/1000Mbps Ethernet. Storage interfaces include SATA 3Gbps and multiple USB 2.0 ports, including OTG, all with integrated PHYs. Memory support covers LPDDR2, DDR3L, and DDR3 RAM controllers. Security features include ARM TZ, A-HAB, CAAM, CSU, SJC, and SNVS. This processor is designed for demanding applications in industries such as automotive, industrial, and consumer electronics, operating within an ambient temperature range of -40°C to 125°C (TJ).
Additional Information
Series: i.MX6DPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 624-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR3L, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel |
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, S/PDIF, UART |
