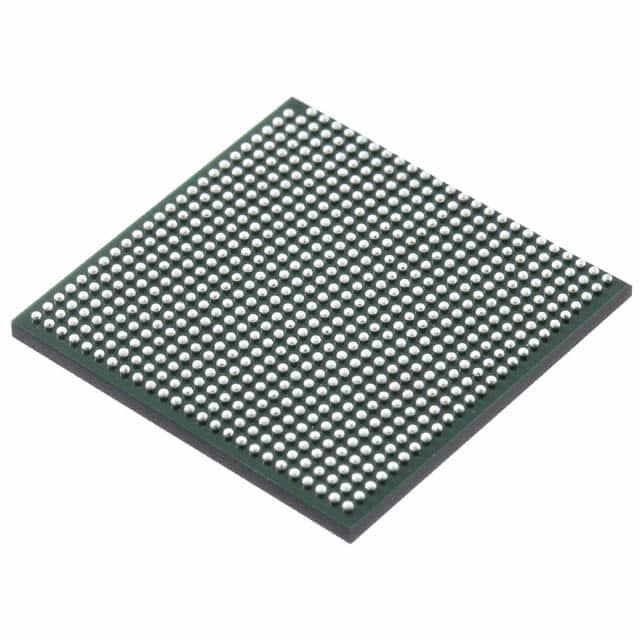

MCIMX6DP4AVT1AB
IC MPU I.MX6DP 1.0GHZ 624FCBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6DP Series ARM® Cortex®-A9 microprocessor, part number MCIMX6DP4AVT1AB, is a dual-core, 32-bit processing unit operating at 1.0GHz. This 624-FCBGA (21x21) packaged component features extensive peripheral support including multiple UART, SPI, I2C, and I2S interfaces, alongside CAN, Ethernet (10/100/1000Mbps), and SATA 3Gbps. It integrates graphics acceleration and display controllers for HDMI, LVDS, and MIPI/DSI. Memory support includes LPDDR2, DDR3L, and DDR3. Security is enhanced by features such as ARM TZ, CAAM, and SNVS. This device is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: i.MX6DPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 624-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR3L, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel |
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, S/PDIF, UART |
