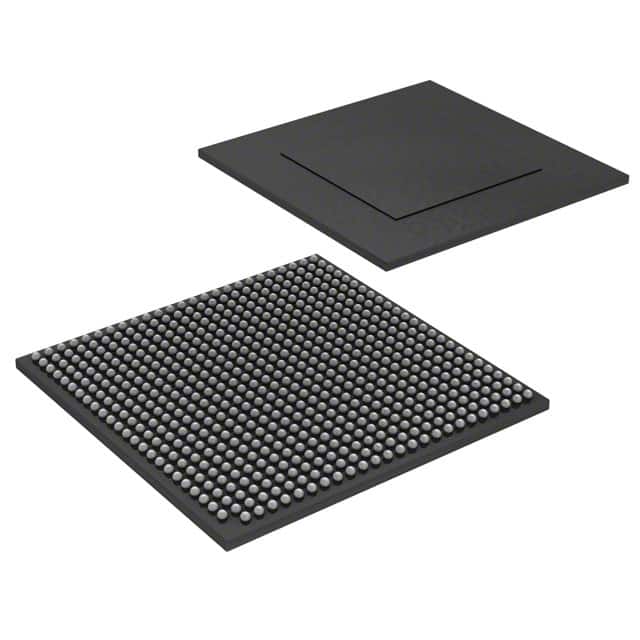

MCIMX6D6AVT10ACR
IC MPU I.MX6D 1.0GHZ 624FCBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6D series microprocessor, part number MCIMX6D6AVT10ACR, offers a dual-core, 32-bit ARM Cortex-A9 processor operating at 1.0GHz. This 624-FCBGA packaged component features extensive peripheral support including CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART interfaces. It integrates multimedia co-processors and NEON™ SIMD for enhanced processing capabilities, along with a keypad and LCD controller. Graphics acceleration is provided, and it supports 10/100/1000Mbps Ethernet and SATA 3Gbps. RAM controller support includes LPDDR2, LVDDR3, and DDR3. The device offers four USB 2.0 ports with PHY and advanced security features such as ARM TZ, Boot Security, and Cryptography. Found in automotive and industrial applications, this surface mount component operates within a -40°C to 125°C junction temperature range. It is supplied on a Tape & Reel (TR) package.
Additional Information
Series: i.MX6DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 624-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (4) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
