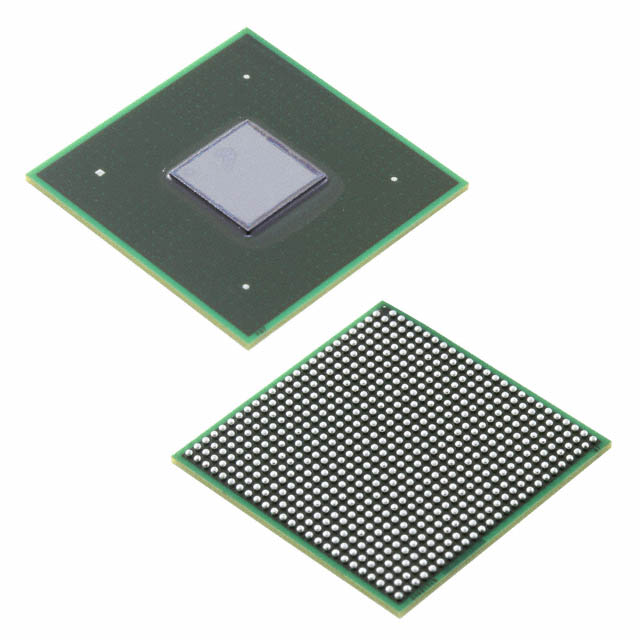

MCIMX6D5EYM12AC
IC MPU I.MX6D 1.2GHZ 624FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. presents the MCIMX6D5EYM12AC, a dual-core ARM Cortex-A9 microprocessor from the i.MX6D series. This 32-bit processor operates at 1.2GHz and is housed in a 624-FCPBGA (21x21) package. It features NEON™ SIMD for multimedia processing and includes extensive interfaces such as CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART. Connectivity is enhanced with Gigabit Ethernet and four USB 2.0 ports with PHY. The component supports LPDDR2, LVDDR3, and DDR3 RAM controllers. Graphics acceleration capabilities are integrated, along with display and interface controllers for Keypad and LCD. Security features include ARM TZ, Boot Security, Cryptography, and RTIC. This microprocessor is suitable for demanding applications in industrial automation, automotive, and advanced consumer electronics. The operating temperature range is -20°C to 105°C (TJ).
Additional Information
Series: i.MX6DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 624-LFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.2GHz |
| Operating Temperature | -20°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCPBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (4) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
