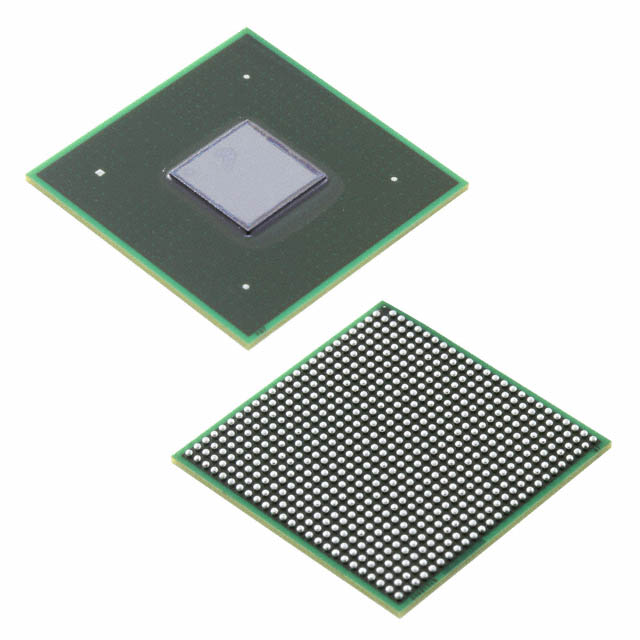

MCIMX6D5EYM10ACR
IC MPU I.MX6D 1.0GHZ 624FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MCIMX6D5EYM10ACR is a dual-core, 32-bit ARM Cortex-A9 microprocessor operating at 1.0GHz. This i.MX6D series component features a 624-FCPBGA (21x21) package and supports LPDDR2, LVDDR3, and DDR3 RAM. It offers extensive connectivity options including CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART, 10/100/1000Mbps Ethernet, and four USB 2.0 ports with PHY. Enhanced multimedia capabilities are provided by NEON SIMD co-processing and dedicated graphics acceleration. Security features include ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, and Secure RTC. This component is suitable for applications requiring advanced processing and connectivity in the industrial, automotive, and consumer electronics sectors. It is supplied in a Tape & Reel (TR) package and operates within a junction temperature range of -20°C to 105°C.
Additional Information
Series: i.MX6DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 624-LFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -20°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCPBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (4) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
