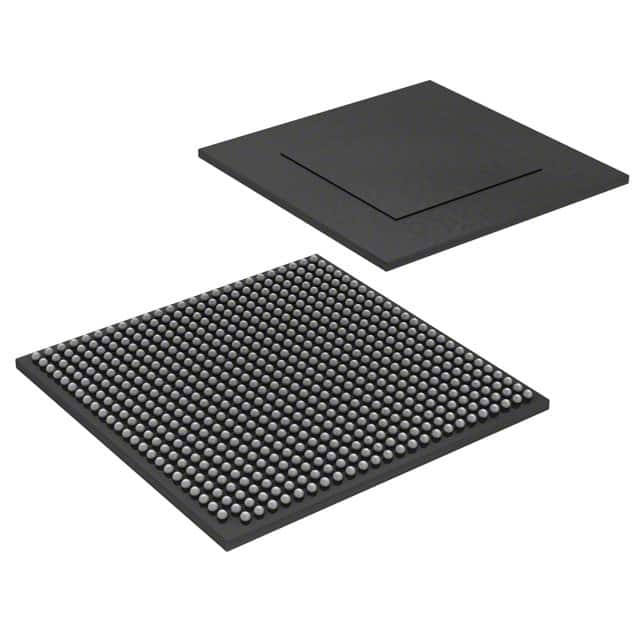

MCIMX6D4AVT10ADR
IC MPU I.MX6D 1.0GHZ 624FCBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6D Series ARM® Cortex®-A9 Microprocessor, part number MCIMX6D4AVT10ADR, features a dual-core 32-bit architecture operating at 1.0GHz. This 624-FCBGA (21x21) package offers extensive peripheral connectivity including CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART interfaces. It supports up to 1000Mbps Ethernet and four USB 2.0 ports with PHY. Graphics acceleration capabilities are integrated, along with a keypad and LCD controller. Memory support extends to LPDDR2, LVDDR3, and DDR3 RAM. This component includes multimedia and NEON™ SIMD co-processors, and robust security features such as ARM TZ, Boot Security, and Cryptography. Operating within a temperature range of -40°C to 125°C (TJ), it finds application in automotive, industrial, and consumer electronics.
Additional Information
Series: i.MX6DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 624-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (4) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
