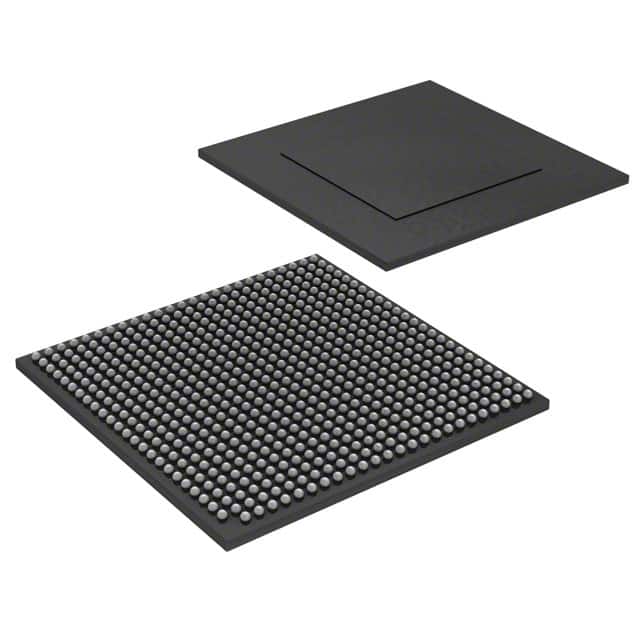

MCIMX6D4AVT10AC
IC MPU I.MX6D 1.0GHZ 624FCBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. presents the MCIMX6D4AVT10AC, an i.MX6D series ARM Cortex-A9 microprocessor. This 32-bit, dual-core processor operates at 1.0GHz, featuring a 624-FCBGA (21x21) package. It integrates multimedia co-processors with NEON™ SIMD capabilities and provides comprehensive display and interface control, including keypad and LCD controllers. Connectivity is robust with multiple USB 2.0 ports with PHY, Gigabit Ethernet, SATA 3Gbps, and numerous serial interfaces such as CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART. The device supports LPDDR2, LVDDR3, and DDR3 memory controllers. Enhanced security features include ARM TZ, Boot Security, Cryptography, and Secure RTC. Operating across an industrial temperature range of -40°C to 125°C (TJ), this component is suited for applications in automotive, industrial automation, and digital signage.
Additional Information
Series: i.MX6DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 624-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (4) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
