MCIMX6D4AVT08ADR
IC MPU I.MX6D 852MHZ 624FCBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX6D Series ARM Cortex-A9 dual-core microprocessor, part number MCIMX6D4AVT08ADR. This 32-bit microprocessor operates at 852MHz and features a 624-FCBGA (21x21) package. It includes multimedia co-processors with NEON SIMD, graphics acceleration, and support for LPDDR2, LVDDR3, and DDR3 RAM controllers. Connectivity options include CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART, single SATA 3Gbps, and four USB 2.0 ports with PHY. The device also integrates 10/100/1000Mbps Ethernet and display/interface controllers for Keypad and LCD. Security features encompass ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, and Secure RTC. Designed for operation within a -40°C to 125°C junction temperature range, this component is suitable for industrial and automotive applications. It is supplied on a Tape & Reel (TR) package.
Additional Information
Series: i.MX6DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 624-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 852MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Supplier Device Package | 624-FCBGA (21x21) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 + PHY (4) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
Request a Quote
Clients Also Buy

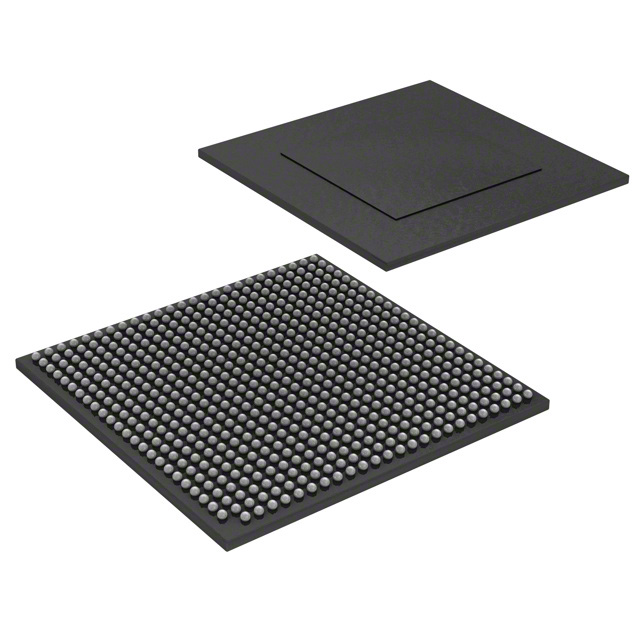

MCIMX6D7CVT08AD
