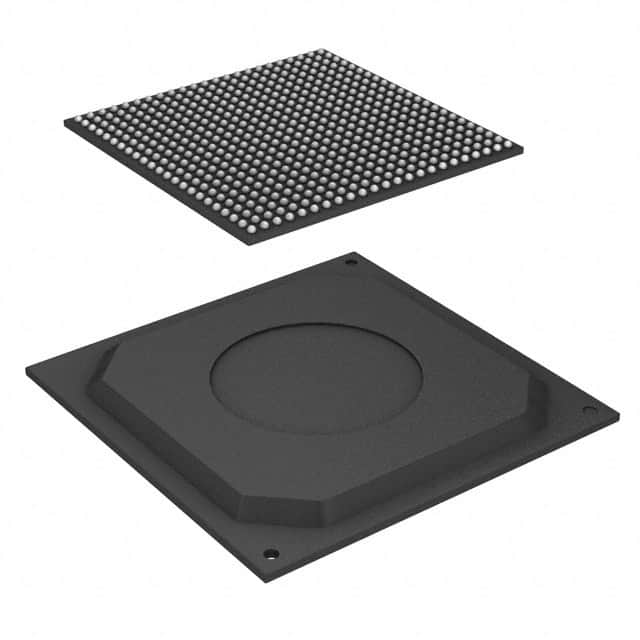

MCIMX537CVV8C
IC MPU I.MX53 800MHZ 529FBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX53 series microprocessor, part number MCIMX537CVV8C. This 32-bit, single-core ARM Cortex-A8 processor operates at 800MHz, featuring extensive peripheral support including 1-Wire, AC'97, CAN, I2C, I2S, MMC/SD, SAI, SPI, SSI, and UART. It includes dual USB 2.0 ports, one with PHY, and a 10/100Mbps Ethernet interface. Graphics acceleration capabilities are integrated, alongside a keypad and LCD controller. Memory support includes LPDDR2, DDR2, and DDR3 RAM controllers. Enhanced security features are present, such as ARM TrustZone, boot security, cryptography, and secure memory options. The component is supplied in a 529-FBGA (19x19) package, suitable for surface mounting and rated for an operating temperature range of -40°C to 85°C (TA). This device is commonly utilized in industrial automation, automotive infotainment, and consumer electronics applications.
Additional Information
Series: i.MX53RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 529-FBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM® Cortex®-A8 |
| Voltage - I/O | 1.3V, 1.8V, 2.775V, 3.3V |
| Supplier Device Package | 529-FBGA (19x19) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 (2), USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR2, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 1.5Gbps (1) |
| Additional Interfaces | 1-Wire, AC'97, CAN, I2C, I2S, MMC\/SD, SAI, SPI, SSI, UART |
