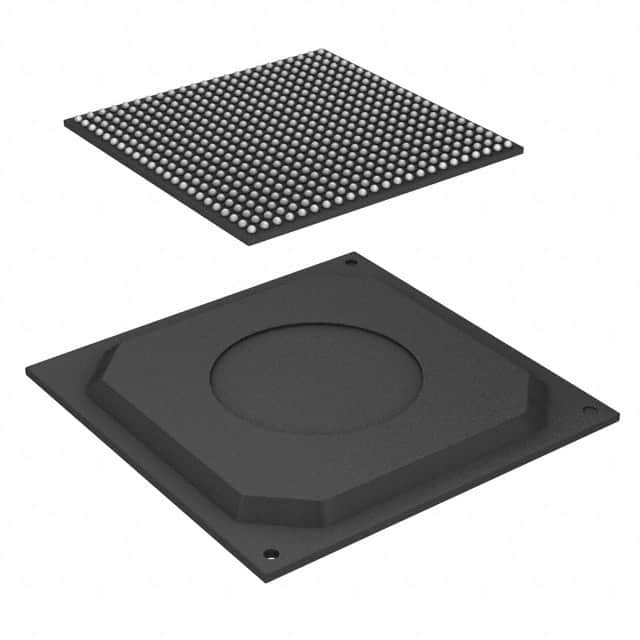

MCIMX536AVV8C2
IC MPU I.MX53 800MHZ 529FBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX53 series ARM Cortex-A8 microprocessor, part number MCIMX536AVV8C2. This 32-bit, single-core processor operates at 800MHz and features a 529-FBGA (19x19) package. It integrates multimedia co-processors with NEON SIMD, and includes comprehensive display and interface controllers for Keypad and LCD. Connectivity options are extensive, offering 1-Wire, AC'97, CAN, I2C, I2S, MMC/SD, SAI, SPI, SSI, UART, dual USB 2.0 ports (with PHY), and a 10/100Mbps Ethernet interface. Graphics acceleration is supported. Memory support includes LPDDR2, DDR2, and DDR3 RAM controllers. The device is equipped with robust security features, including ARM TZ, Boot Security, Cryptography, and Secure RTC. This component is suitable for applications in automotive, industrial automation, and consumer electronics. Operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: i.MX53RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 529-FBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A8 |
| Voltage - I/O | 1.3V, 1.8V, 2.775V, 3.3V |
| Supplier Device Package | 529-FBGA (19x19) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 (2), USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR2, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 1.5Gbps (1) |
| Additional Interfaces | 1-Wire, AC'97, CAN, I2C, I2S, MMC\/SD, SAI, SPI, SSI, UART |
