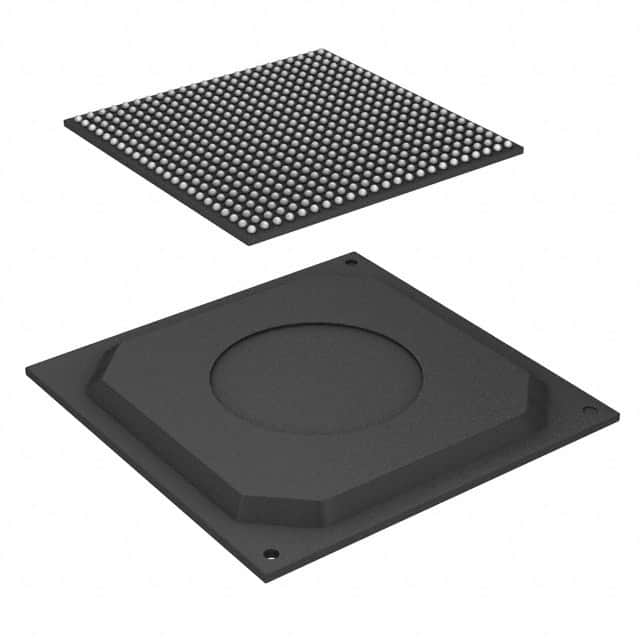

MCIMX536AVP8C2R2
IC MPU I.MX53 800MHZ 529FBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
ARM® Cortex®-A8 Microprocessor IC i.MX53 1 Core, 32-Bit 800MHz 529-FBGA (19x19)
Additional Information
Series: i.MX53RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 529-FBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A8 |
| Voltage - I/O | 1.3V, 1.8V, 2.775V, 3.3V |
| Supplier Device Package | 529-FBGA (19x19) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 (2), USB 2.0 + PHY (1), USB 2.0 OTG + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | DDR2, DDR3, LPDDR2 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 1.5Gbps (1) |
| Additional Interfaces | 1-Wire, AC'97, CAN, I2C, I2S, MMC\/SD, SAI, SPI, SSI, UART |
