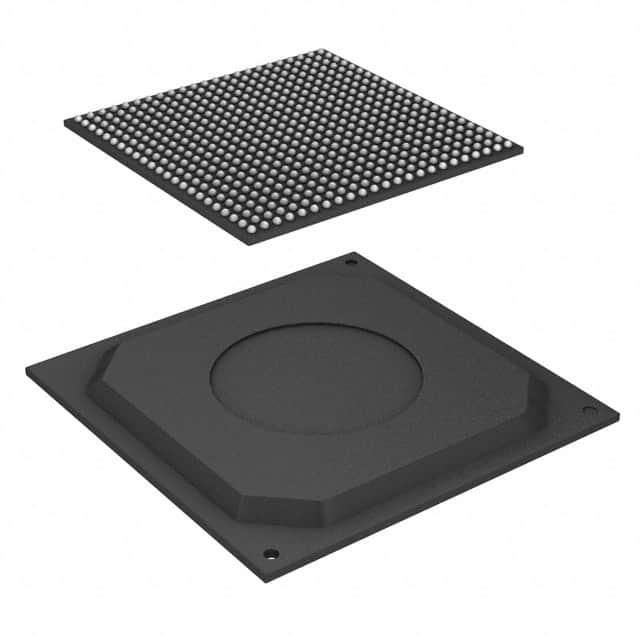

MCIMX535DVV1C
IC MPU I.MX53 1.0GHZ 529FBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. i.MX53 series MCIMX535DVV1C is a 1.0GHz ARM Cortex-A8 microprocessor. This 32-bit, single-core device features a 529-FBGA (19x19) package and supports a wide range of interfaces including 1-Wire, AC'97, CAN, I2C, I2S, MMC/SD, SAI, SPI, SSI, and UART. It also includes multimedia co-processors with NEON SIMD for enhanced processing capabilities. Graphics acceleration is provided, along with display and interface controllers for Keypad and LCD. Connectivity options include Ethernet (10/100Mbps) and multiple USB 2.0 ports, two with integrated PHY. Storage interfaces are supported via SATA 1.5Gbps. The component offers robust security features such as ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, and Secure RTC. It is designed for surface mounting and operates within a temperature range of -20°C to 85°C (TC), with I/O voltage support at 1.3V, 1.8V, 2.775V, and 3.3V. RAM controllers for LPDDR2, DDR2, and DDR3 are also integrated. This microprocessor is commonly utilized in industrial automation, automotive infotainment, and smart home applications.
Additional Information
Series: i.MX53RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 529-FBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -20°C ~ 85°C (TC) |
| Core Processor | ARM® Cortex®-A8 |
| Voltage - I/O | 1.3V, 1.8V, 2.775V, 3.3V |
| Supplier Device Package | 529-FBGA (19x19) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 (2), USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR2, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 1.5Gbps (1) |
| Additional Interfaces | 1-Wire, AC'97, CAN, I2C, I2S, MMC\/SD, SAI, SPI, SSI, UART |
