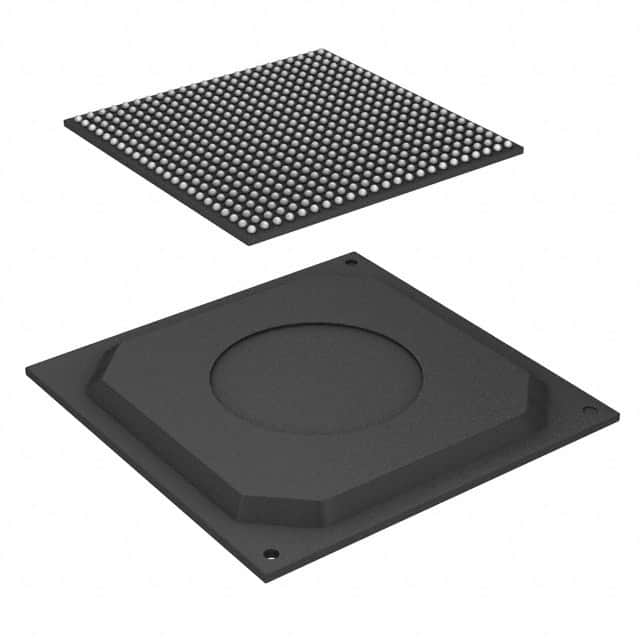

MCIMX534AVV8B
IC MPU I.MX53 800MHZ 529FBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX53 series ARM Cortex-A8 microprocessor, part number MCIMX534AVV8B, features a single 32-bit core operating at 800MHz. This component is housed in a 529-FBGA (19x19) package for surface mounting. It includes a multimedia co-processor with NEON SIMD capabilities and dedicated graphics acceleration. The device supports LPDDR2, DDR2, and DDR3 RAM controllers. Integrated interfaces encompass 1-Wire, AC'97, CAN, I2C, I2S, MMC/SD, SAI, SPI, SSI, and multiple UARTs. Connectivity options include 10/100Mbps Ethernet, two USB 2.0 ports, and two USB 2.0 ports with PHY. Additional interfaces include keypad and LCD controllers, along with SATA 1.5Gbps. Security features are robust, incorporating ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, and Secure RTC. The MCIMX534AVV8B operates across a junction temperature range of -40°C to 125°C and supports I/O voltages of 1.3V, 1.8V, 2.775V, and 3.3V. This microprocessor is commonly utilized in industrial and automotive applications.
Additional Information
Series: i.MX53RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 529-FBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A8 |
| Voltage - I/O | 1.3V, 1.8V, 2.775V, 3.3V |
| Supplier Device Package | 529-FBGA (19x19) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 (2), USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR2, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, T |
| SATA | SATA 1.5Gbps (1) |
| Additional Interfaces | 1-Wire, AC'97, CAN, I2C, I2S, MMC\/SD, SAI, SPI, SSI, UART |
