MCIMX357CVM5BR2
IC MPU I.MX35 532MHZ 400LFBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

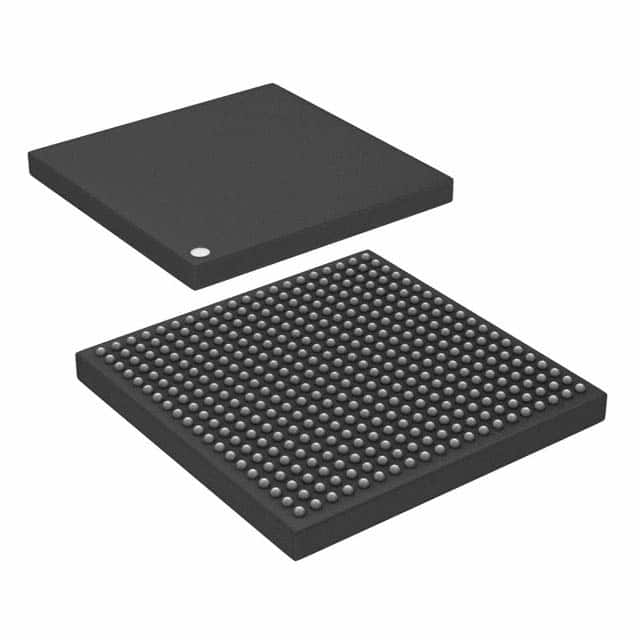

The NXP USA Inc. i.MX35 series MCIMX357CVM5BR2 is a 32-bit, single-core ARM1136JF-S microprocessor operating at 532MHz. This component features a 400-LFBGA (17x17) package and supports surface mounting. It includes multimedia co-processors and DSP capabilities with GPU, IPU, and VFP. The device offers extensive connectivity options, including 1-Wire, ASRC, ATA, CAN, I2C, I2S, MMC/SDIO, SAI, SPI, SSI, UART, and dual USB 2.0 ports with PHY. Display and interface controllers such as Keypad, KPP, and LCD are integrated, along with 10/100Mbps Ethernet. RAM controllers for LPDDR and DDR2 are present. Security features include Secure Fusebox, Secure JTAG, and tamper detection. The operating temperature range is -40°C to 85°C. This processor is commonly utilized in industrial, automotive, and consumer electronics applications demanding robust multimedia and connectivity performance.
Additional Information
Series: i.MX35RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 400-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 532MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM1136JF-S |
| Voltage - I/O | 1.8V, 2.0V, 2.5V, 2.7V, 3.0V, 3.3V |
| Supplier Device Package | 400-LFBGA (17x17) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; GPU, IPU, VFP |
| RAM Controllers | LPDDR, DDR2 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, KPP, LCD |
| Security Features | Secure Fusebox, Secure JTAG, Tamper Detection |
| SATA | - |
| Additional Interfaces | 1-Wire, ASRC, ATA, CAN, I2C, I2S, MMC/SDIO, SAI, SPI, SSI, UART |
