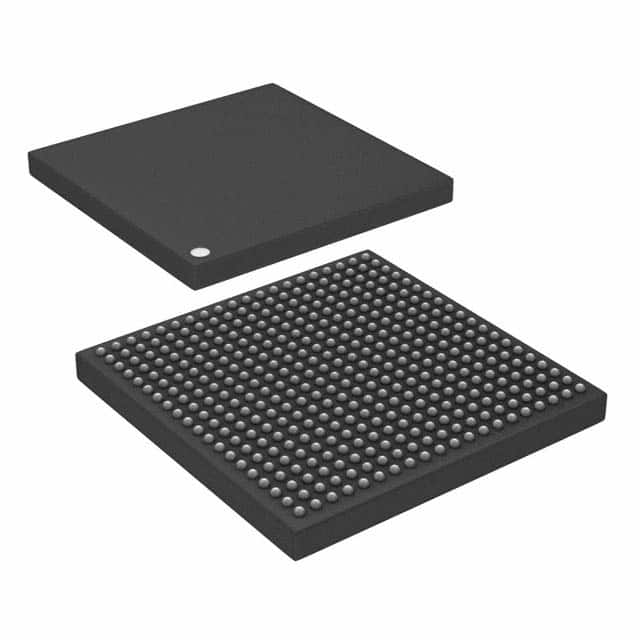

MCIMX356AJQ5CR2
IC MPU I.MX35 532MHZ 400LFBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. ARM1136JF-S Microprocessor, part number MCIMX356AJQ5CR2, from the i.MX35 series. This 32-bit, single-core processor operates at 532MHz and is housed in a 400-LFBGA (17x17) package. It features multimedia co-processors including a GPU, IPU, and VFP for graphics acceleration. Connectivity options are extensive, with support for 1-Wire, ASRC, ATA, CAN, I2C, I2S, MMC/SDIO, SAI, SDHC, SPI, SSI, UART, 10/100Mbps Ethernet, and dual USB 2.0 ports with PHY. Display and interface controllers include Keypad and KPP, along with an LCD controller. RAM support extends to LPDDR and DDR2. Security features are integrated with Secure Fusebox and Secure JTAG. This component is suitable for applications requiring robust multimedia processing and connectivity, commonly found in industrial, automotive, and consumer electronics sectors. It is supplied on a Tape & Reel (TR) for surface mounting and operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: i.MX35RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 400-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 532MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM1136JF-S |
| Voltage - I/O | 1.8V, 2.0V, 2.5V, 2.7V, 3.0V, 3.3V |
| Supplier Device Package | 400-LFBGA (17x17) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; GPU, IPU, VFP |
| RAM Controllers | LPDDR, DDR2 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, KPP, LCD |
| Security Features | Secure Fusebox, Secure JTAG |
| SATA | - |
| Additional Interfaces | 1-Wire, ASRC, ATA, CAN, I2C, I2S, MMC/SDIO, SAI, SDHC, SPI, SSI, UART |
