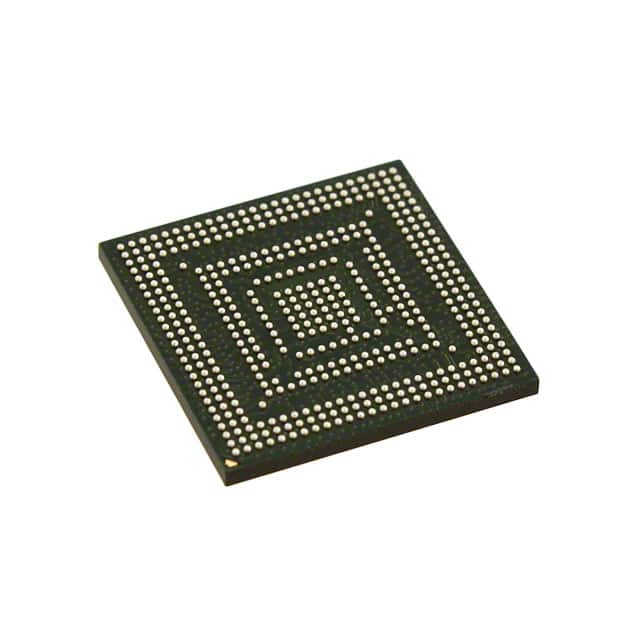

MCIMX31LVKN5
IC MPU I.MX31 532MHZ 457LFBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. i.MX31 series microprocessor, part number MCIMX31LVKN5. This 32-bit, single-core ARM1136JF-S processor operates at 532MHz, housed in a 457-LFBGA (14x14) package. It features extensive peripheral support including 1-Wire, AC97, ATA, FIR, I2C, I2S, MMC/SD/SDIO, MSHC, PCMCIA, SDHC, SIM, SPI, SSI, and UART interfaces. Graphics acceleration and display capabilities are provided through integrated GPU, IPU, and LCD controllers, along with multimedia co-processors for MPEG-4 and VFP. Security features include a Random Number Generator, RTIC, Secure Fusebox, and Secure JTAG. USB 2.0 (3 ports) and DDR RAM controllers are also integrated. Designed for surface mounting, it operates within a 0°C to 70°C temperature range and supports I/O voltages of 1.8V, 2.0V, 2.5V, 2.7V, and 3.0V. Applications span industrial automation, medical devices, and embedded systems.
Additional Information
Series: i.MX31RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 457-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 532MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Core Processor | ARM1136JF-S |
| Voltage - I/O | 1.8V, 2.0V, 2.5V, 2.7V, 3.0V |
| Supplier Device Package | 457-LFBGA (14x14) |
| Ethernet | - |
| USB | USB 2.0 (3) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; GPU, IPU, MPEG-4, VFP |
| RAM Controllers | DDR |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keyboard, Keypad, LCD |
| Security Features | Random Number Generator, RTIC, Secure Fusebox, Secure JTAG, Secure Memory |
| SATA | - |
| Additional Interfaces | 1-Wire, AC97, ATA, FIR, I2C, I2S, MMC/SD/SDIO, MSHC, PCMCIA, SDHC, SIM, SPI, SSI, UART |
