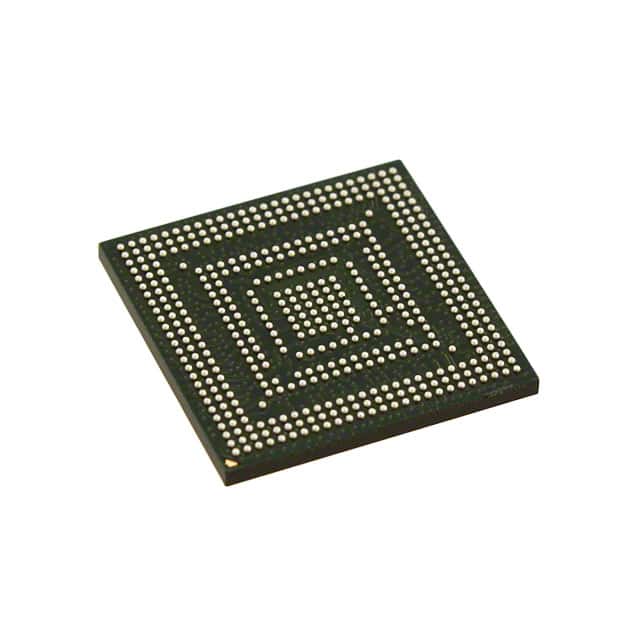

MCIMX31CVKN5C
IC MPU I.MX31 532MHZ 457LFBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. i.MX31 series MCIMX31CVKN5C is a 32-bit, single-core ARM1136JF-S microprocessor operating at 532MHz. This component features extensive peripheral support including 1-Wire, AC97, ATA, FIR, I2C, I2S, MMC/SD/SDIO, MSHC, PCMCIA, SDHC, SIM, SPI, SSI, UART, and USB 2.0 (3 ports). For multimedia and graphics acceleration, it integrates a GPU, IPU, MPEG-4, and VFP co-processors. Display and interface control is managed through dedicated keyboard, keypad, and LCD controllers. Security features include a Random Number Generator, RTIC, Secure Fusebox, and Secure JTAG. This surface mount device is supplied in a 457-LFBGA (14x14) package and supports DDR RAM controllers. It operates within an industrial temperature range of -40°C to 85°C, with I/O voltages configurable from 1.8V to 3.0V. Applications span industrial automation, automotive infotainment, and consumer electronics requiring robust processing and multimedia capabilities.
Additional Information
Series: i.MX31RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 457-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 532MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM1136JF-S |
| Voltage - I/O | 1.8V, 2.0V, 2.5V, 2.7V, 3.0V |
| Supplier Device Package | 457-LFBGA (14x14) |
| Ethernet | - |
| USB | USB 2.0 (3) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; GPU, IPU, MPEG-4, VFP |
| RAM Controllers | DDR |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keyboard, Keypad, LCD |
| Security Features | Random Number Generator, RTIC, Secure Fusebox, Secure JTAG, Secure Memory |
| SATA | - |
| Additional Interfaces | 1-Wire, AC97, ATA, FIR, I2C, I2S, MMC/SD/SDIO, MSHC, PCMCIA, SDHC, SIM, SPI, SSI, UART |
