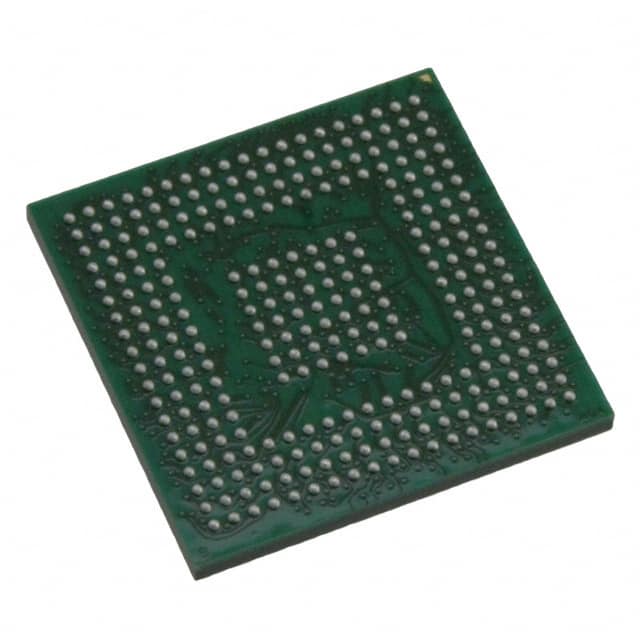

MC9328MX21SCVMR2
IC MPU I.MX21 266MHZ 289PBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. i.MX21 series MC9328MX21SCVMR2 is a high-performance 32-bit microprocessor featuring a single ARM926EJ-S core operating at 266MHz. This surface-mount component is housed in a 289-PBGA (17x17) package and is supplied on a tape and reel. It offers extensive peripheral support including multiple UARTs, SPI, I2C, I2S, SSI, and two USB 1.x interfaces, alongside MMC/SD support. Display capabilities are enhanced with keypad and LCD controllers. The device accommodates various memory types with its SDRAM controller and operates across a temperature range of -40°C to 85°C. This microprocessor is commonly utilized in industrial automation, consumer electronics, and embedded systems requiring robust processing and connectivity solutions.
Additional Information
Series: i.MX21RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM926EJ-S |
| Voltage - I/O | 1.8V, 3.0V |
| Supplier Device Package | 289-PBGA (17x17) |
| Ethernet | - |
| USB | USB 1.x (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | - |
| SATA | - |
| Additional Interfaces | 1-Wire, I2C, I2S, SPI, SSI, MMC/SD, UART |
