MC8640DTVJ1067NE
IC MPU MPC86XX 1.067GHZ 1023BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

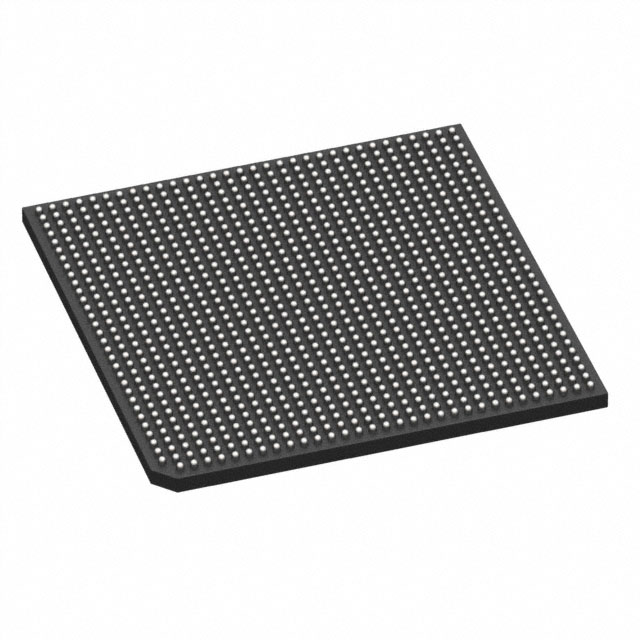

The NXP USA Inc. MPC86xx series MC8640DTVJ1067NE is a PowerPC e600 microprocessor featuring two 32-bit cores operating at 1.067GHz. This device is housed in a 1023-FCCBGA package with a 33x33mm footprint. It supports DDR and DDR2 memory controllers and includes multiple Ethernet interfaces with 10/100/1000Mbps capability. Additional interfaces provided are DUART, HSSI, I2C, and RapidIO. The operating temperature range is -40°C to 105°C (TA). This component is commonly utilized in telecommunications, networking infrastructure, and industrial control applications.
Additional Information
Series: MPC86xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1023-BCBGA, FCCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.067GHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e600 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 1023-FCCBGA (33x33) |
| Ethernet | 10/100/1000Mbps (4) |
| USB | - |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, RapidIO |
