MC8640DTHJ1067NE
IC MPU MPC86XX 1.067GHZ 1023BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

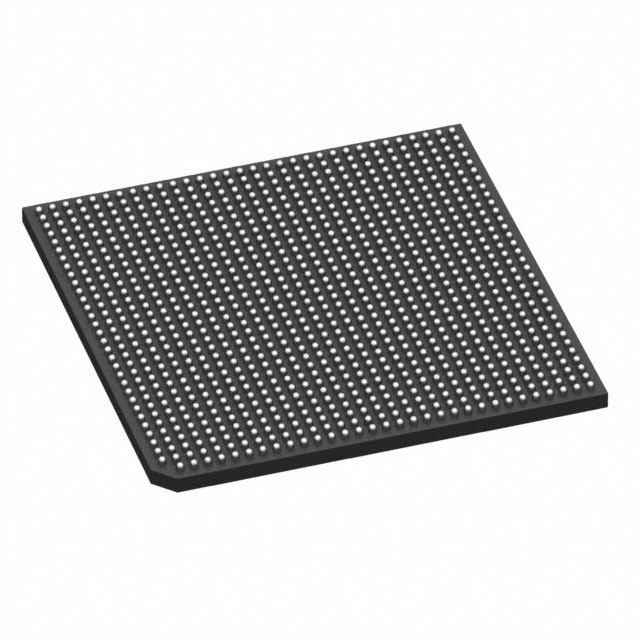

NXP USA Inc. MPC86xx Series 32-Bit Dual-Core PowerPC e600 microprocessor, part number MC8640DTHJ1067NE, operates at 1.067GHz. This surface-mount component features a 1023-FCCBGA (33x33) package and supports DDR and DDR2 RAM controllers. Additional interfaces include DUART, HSSI, I2C, and RapidIO. It offers four 10/100/1000Mbps Ethernet ports. The operating temperature range is -40°C to 105°C (TA), with I/O voltage support for 1.8V, 2.5V, and 3.3V. This processor is utilized in networking infrastructure, industrial control systems, and high-performance embedded applications.
Additional Information
Series: MPC86xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1023-BCBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.067GHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e600 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 1023-FCCBGA (33x33) |
| Ethernet | 10/100/1000Mbps (4) |
| USB | - |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, RapidIO |
Request a Quote
