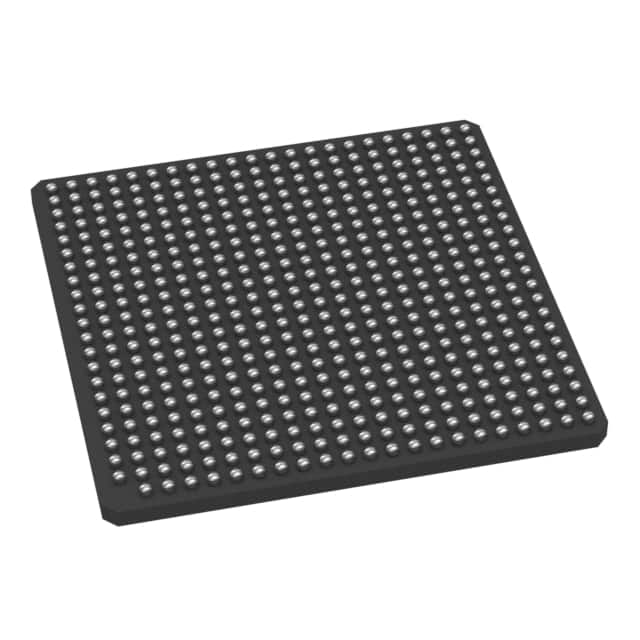

MC7457RX1000LC
IC MPU MPC74XX 1.0GHZ 483FCCBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MPC74xx series MC7457RX1000LC is a 32-bit PowerPC G4 microprocessor featuring a single core operating at 1.0GHz. This component is housed in a 483-FCCBGA (29x29) package suitable for surface mount applications. It includes multimedia and SIMD co-processors for enhanced processing capabilities. The operating temperature range is 0°C to 105°C (TA). Supported I/O voltages include 1.5V, 1.8V, and 2.5V. This microprocessor is utilized in demanding applications within the aerospace, defense, and industrial automation sectors.
Additional Information
Series: MPC74xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 483-BCBGA, FCCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC G4 |
| Voltage - I/O | 1.5V, 1.8V, 2.5V |
| Supplier Device Package | 483-FCCBGA (29x29) |
| Ethernet | - |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; SIMD |
| RAM Controllers | - |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | - |
