MC7448TVU1267ND
IC MPU MPC74XX 1.267GHZ 360BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. MPC74xx series MC7448TVU1267ND is a single-core, 32-bit PowerPC G4 microprocessor operating at 1.267GHz. This component features SIMD and Multimedia co-processors. It is housed in a 360-FCCBGA (25x25) package for surface mounting. The device supports I/O voltages of 1.5V, 1.8V, and 2.5V, and operates within an ambient temperature range of -40°C to 105°C. This processor is utilized in embedded systems and high-performance computing applications.
Additional Information
Series: MPC74xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 360-CBGA, FCCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.267GHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC G4 |
| Voltage - I/O | 1.5V, 1.8V, 2.5V |
| Supplier Device Package | 360-FCCBGA (25x25) |
| Ethernet | - |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; SIMD |
| RAM Controllers | - |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | - |
Request a Quote
Clients Also Buy

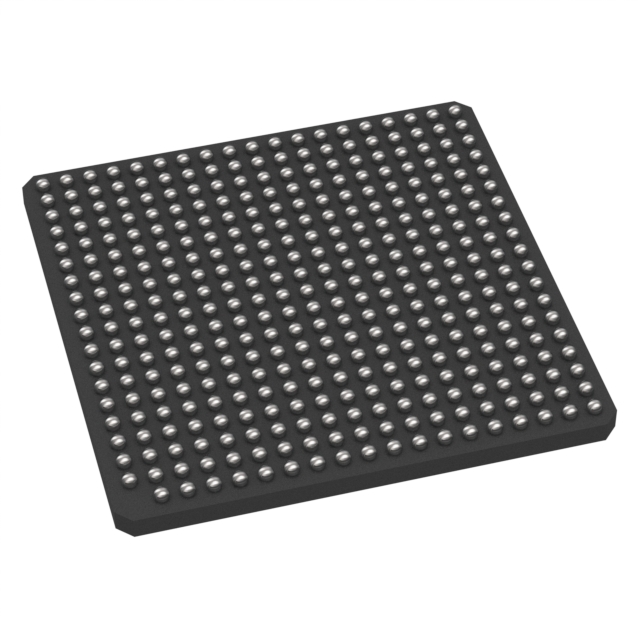

MC7410VU400LE
