MC7448HX1400ND
IC MPU MPC74XX 1.4GHZ 360FCCBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

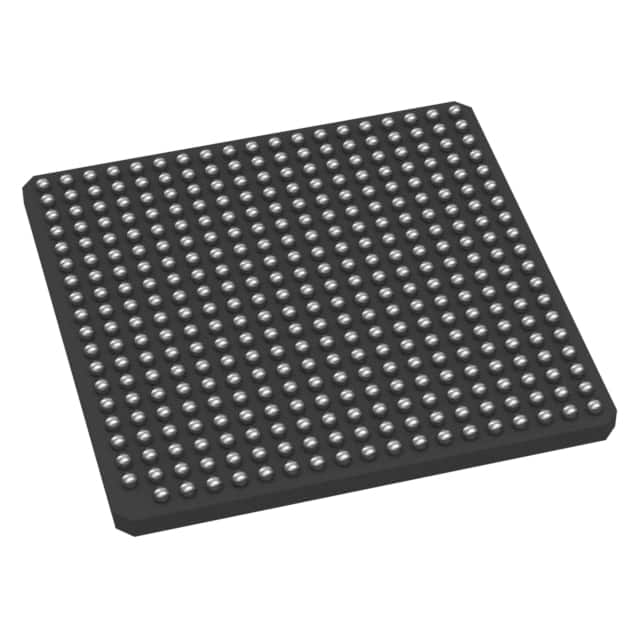

NXP USA Inc. MPC74xx series PowerPC G4 microprocessor, part number MC7448HX1400ND. This single-core, 32-bit processor operates at 1.4GHz and features SIMD multimedia capabilities. It is housed in a 360-FCCBGA (25x25) package, suitable for surface mounting and supplied in trays. The MC7448HX1400ND supports I/O voltages of 1.5V, 1.8V, and 2.5V and has an operating temperature range of 0°C to 105°C (TA). This component is widely utilized in high-performance computing, industrial automation, and embedded systems applications.
Additional Information
Series: MPC74xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 360-BCBGA, FCCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.4GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC G4 |
| Voltage - I/O | 1.5V, 1.8V, 2.5V |
| Supplier Device Package | 360-FCCBGA (25x25) |
| Ethernet | - |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; SIMD |
| RAM Controllers | - |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | - |
