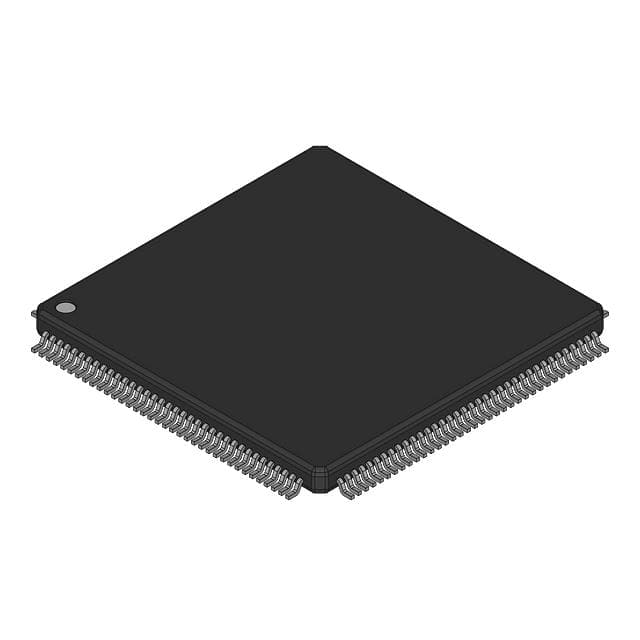

MC68340CAB16E
IC MPU M683XX 16MHZ 144QFPManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MC68340CAB16E is a 32-bit M683xx series microprocessor featuring a single CPU32 core operating at 16MHz. This component is housed in a 144-QFP (28x28) surface mount package and supports DRAM controllers. Additional interfaces include a USART. The MC68340CAB16E operates within an extended temperature range of -40°C to 85°C (TA) and has a 5.0V I/O voltage. This device finds application in industrial automation and embedded control systems.
Additional Information
Series: M683xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-BQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | CPU32 |
| Voltage - I/O | 5.0V |
| Supplier Device Package | 144-QFP (28x28) |
| Ethernet | - |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | USART |
