LS1046AXE8P1A
IC MPU QORIQ 1.4GHZ 780FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

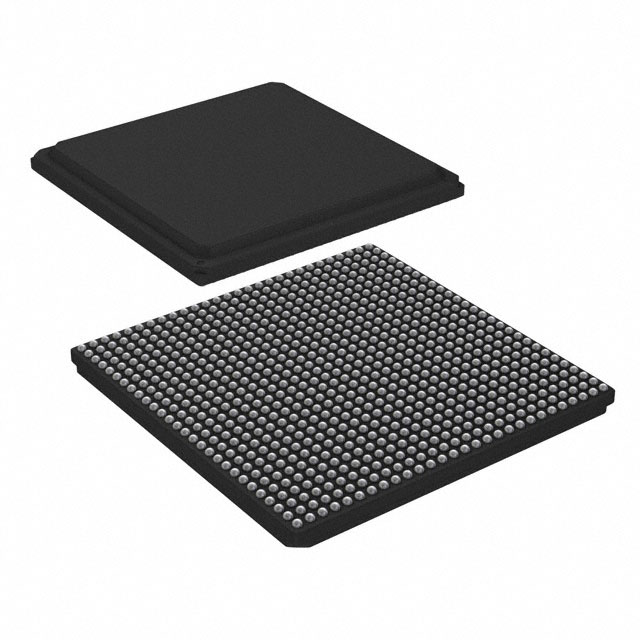

NXP USA Inc. QorIQ® Layerscape LS1046AXE8P1A is a high-performance 64-bit microprocessor featuring four ARM® Cortex®-A72 cores operating at 1.4GHz. This advanced processing unit is housed in a 780-FCPBGA (23x23) package, suitable for surface mount applications. The LS1046AXE8P1A integrates robust networking capabilities, including dual 10GbE, single 2.5GbE, and quad 1GbE interfaces, alongside one SATA 6Gbps port and three USB 3.0 ports with PHY. Memory support is provided via DDR4 controllers. Enhanced security features such as Secure Boot and TrustZone® are incorporated. This component is designed for demanding applications in networking, industrial automation, and automotive sectors.
Additional Information
Series: QorIQ® LayerscapeRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 780-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.4GHz |
| Operating Temperature | -40°C ~ 105°C |
| Core Processor | ARM® Cortex®-A72 |
| Voltage - I/O | - |
| Supplier Device Package | 780-FCPBGA (23x23) |
| Ethernet | 10GbE (2), 2.5GbE (1), 1GbE (4) |
| USB | USB 3.0 (3) + PHY |
| Number of Cores/Bus Width | 4 Core, 64-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR4 |
| Graphics Acceleration | - |
| Display & Interface Controllers | - |
| Security Features | Secure Boot, TrustZone® |
| SATA | SATA 6Gbps (1) |
| Additional Interfaces | - |
