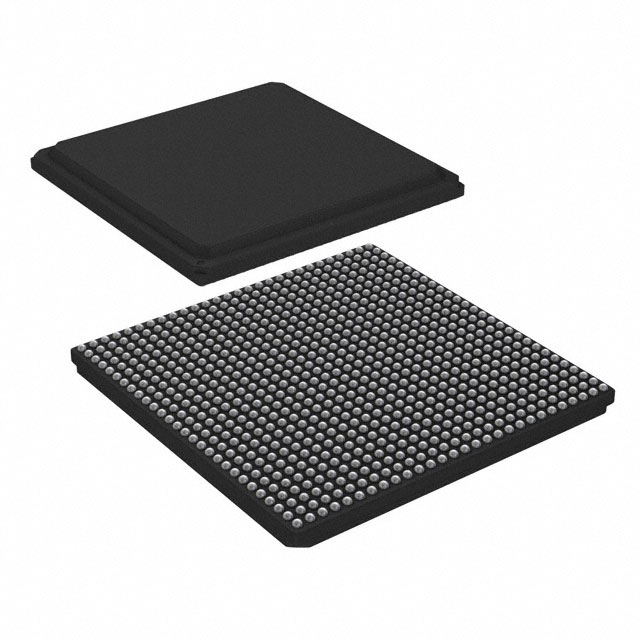

LS1026ASE8P1A
IC MPU QORIQ 1.4GHZ 780FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. QorIQ® Layerscape LS1026ASE8P1A is a dual-core, 64-bit ARM® Cortex®-A72 microprocessor operating at 1.4GHz. This electronic component features a 780-FCPBGA (23x23) package and supports DDR4 RAM controllers. Connectivity options include multiple Ethernet ports (two 10GbE, one 2.5GbE, and four 1GbE), one SATA 6Gbps interface, and three USB 3.0 ports with PHY. Security features such as Secure Boot and TrustZone® are integrated. This device is designed for surface mount applications and operates within an ambient temperature range of 0°C to 105°C. Its robust feature set makes it suitable for demanding applications in networking, industrial automation, and edge computing.
Additional Information
Series: QorIQ® LayerscapeRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 780-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.4GHz |
| Operating Temperature | 0°C ~ 105°C |
| Core Processor | ARM® Cortex®-A72 |
| Voltage - I/O | - |
| Supplier Device Package | 780-FCPBGA (23x23) |
| Ethernet | 10GbE (2), 2.5GbE (1), 1GbE (4) |
| USB | USB 3.0 (3) + PHY |
| Number of Cores/Bus Width | 2 Core, 64-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR4 |
| Graphics Acceleration | - |
| Display & Interface Controllers | - |
| Security Features | Secure Boot, TrustZone® |
| SATA | SATA 6Gbps (1) |
| Additional Interfaces | - |
