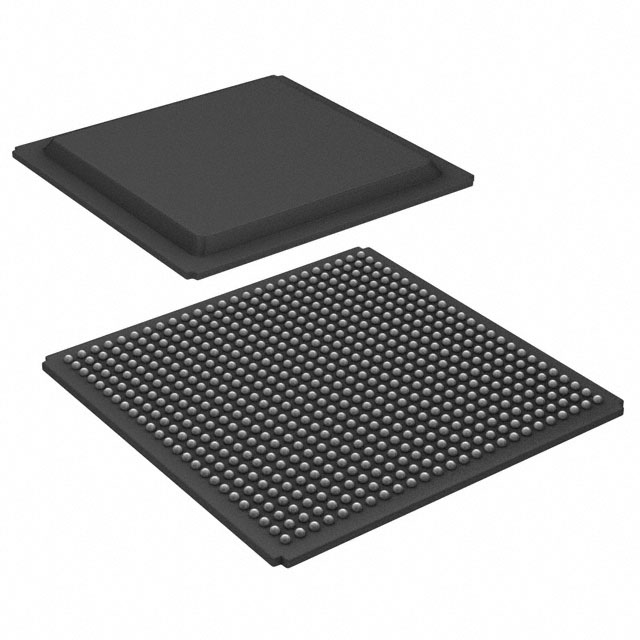

LS1024ASN7JLA
IC MPU QORIQ 1.2GHZ 625FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
ARM® Cortex®-A9 Microprocessor IC QorIQ® Layerscape 2 Core, 32-Bit 1.2GHz 625-FCPBGA (21x21)
Additional Information
Series: QorIQ® LayerscapeRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 625-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.2GHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | - |
| Supplier Device Package | 625-FCPBGA (21x21) |
| Ethernet | GbE (3) |
| USB | USB 2.0 + PHY (1), USB 3.0 + PHY |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3 |
| Graphics Acceleration | - |
| Display & Interface Controllers | - |
| Security Features | Secure Boot, TrustZone® |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | - |
