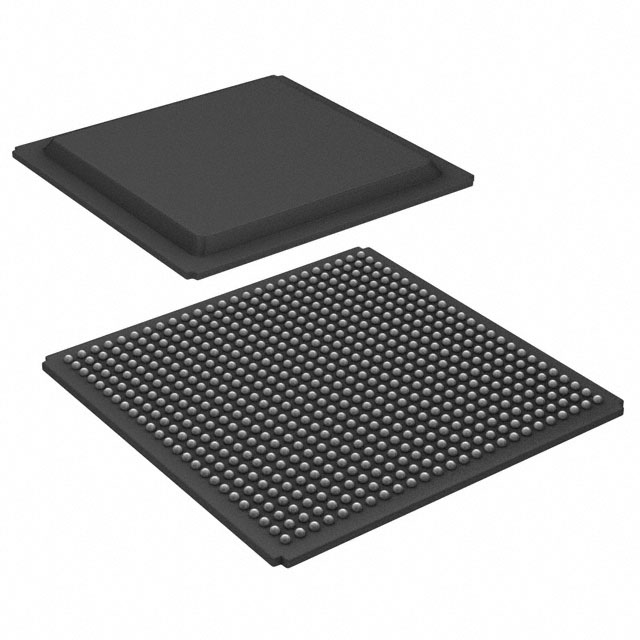

LS1024ASN7ELA
IC MPU QORIQ 1.2GHZ 625FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc.'s LS1024ASN7ELA is a high-performance ARM® Cortex®-A9 based microprocessor from the QorIQ® Layerscape series. This 32-bit, dual-core processor operates at 1.2GHz and is housed in a 625-FCPBGA (21x21) package. Key features include DDR3 RAM controllers, dual SATA 3Gbps interfaces, and triple Gigabit Ethernet ports. It also supports USB 2.0 with PHY and USB 3.0 with PHY, along with security features like Secure Boot and TrustZone®. This component is suitable for applications in networking, industrial automation, and embedded computing.
Additional Information
Series: QorIQ® LayerscapeRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 625-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.2GHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Core Processor | ARM® Cortex®-A9 |
| Voltage - I/O | - |
| Supplier Device Package | 625-FCPBGA (21x21) |
| Ethernet | GbE (3) |
| USB | USB 2.0 + PHY (1), USB 3.0 + PHY |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3 |
| Graphics Acceleration | - |
| Display & Interface Controllers | - |
| Security Features | Secure Boot, TrustZone® |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | - |
