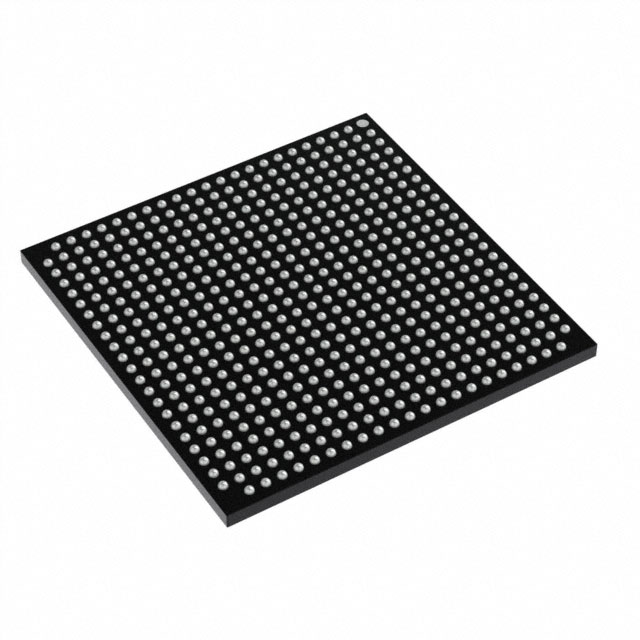

LS1021AXN7HNB
IC MPU QORIQ 800MHZ 525FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ® Layerscape LS1021AXN7HNB is a dual-core, 32-bit ARM® Cortex®-A7 microprocessor operating at 800MHz. This component features a 525-FCPBGA (19x19) package and supports DDR3L and DDR4 memory controllers. Integrated peripherals include three Gigabit Ethernet ports, one SATA 6Gbps interface, and one USB 3.0 port with PHY. Security features such as Secure Boot and TrustZone® are included. The LS1021AXN7HNB is suitable for applications requiring high-performance processing and connectivity, commonly found in networking, industrial automation, and embedded systems. It operates across a temperature range of -40°C to 105°C.
Additional Information
Series: QorIQ® LayerscapeRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 525-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 105°C |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | - |
| Supplier Device Package | 525-FCPBGA (19x19) |
| Ethernet | GbE (3) |
| USB | USB 3.0 (1) + PHY |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3L, DDR4 |
| Graphics Acceleration | - |
| Display & Interface Controllers | 2D-ACE |
| Security Features | Secure Boot, TrustZone® |
| SATA | SATA 6Gbps (1) |
| Additional Interfaces | - |
