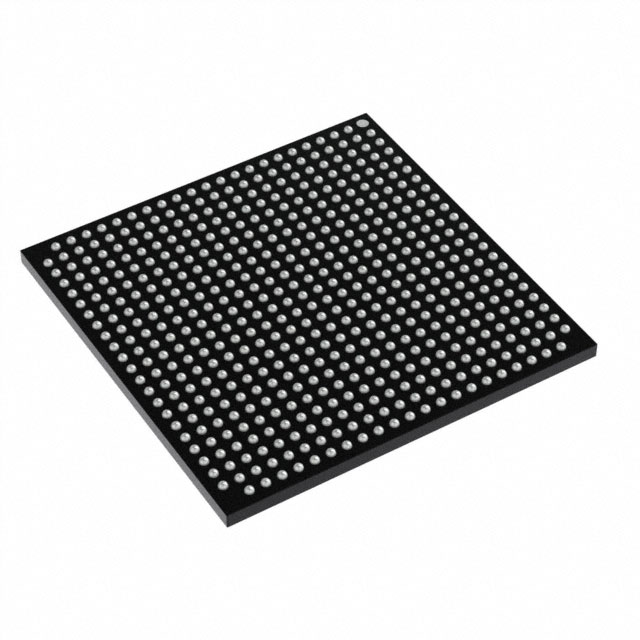

LS1021ASN7MQB
IC MPU QORIQ 1.2GHZ 525FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. LS1021ASN7MQB is a QorIQ® Layerscape series microprocessor featuring dual ARM® Cortex®-A7 32-bit cores operating at 1.2GHz. This component includes a 2D-ACE display and interface controller for enhanced graphical processing, along with integrated GbE (3) and SATA 6Gbps (1) interfaces for robust connectivity. Security is addressed through Secure Boot and TrustZone® capabilities. The device supports DDR3L and DDR4 RAM controllers. This surface mount component is supplied in a 525-FCPBGA (19x19) package, suitable for demanding applications in industrial automation, networking, and embedded systems. The operating temperature range is 0°C to 105°C.
Additional Information
Series: QorIQ® LayerscapeRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 525-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.2GHz |
| Operating Temperature | 0°C ~ 105°C |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | - |
| Supplier Device Package | 525-FCPBGA (19x19) |
| Ethernet | GbE (3) |
| USB | USB 3.0 (1) + PHY |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3L, DDR4 |
| Graphics Acceleration | - |
| Display & Interface Controllers | 2D-ACE |
| Security Features | Secure Boot, TrustZone® |
| SATA | SATA 6Gbps (1) |
| Additional Interfaces | - |
