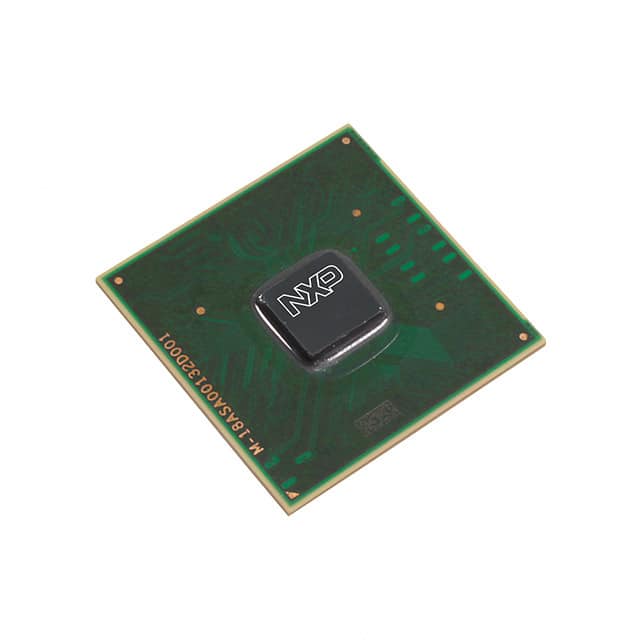

LS1020AXE7HNB
IC MPU QORIQ 800MHZ 525FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. QorIQ® Layerscape series LS1020AXE7HNB is a 32-bit, dual-core ARM® Cortex®-A7 microprocessor operating at 800MHz. This component features a 525-FCPBGA (19x19) package and supports DDR3L and DDR4 RAM controllers. Integrated multimedia capabilities and NEON™ SIMD accelerators enhance processing efficiency. Connectivity options include three Gigabit Ethernet ports, one SATA 3Gbps interface, and USB 2.0 and USB 3.0 with PHY support. Security features such as Secure Boot and TrustZone® are incorporated. This microprocessor is suitable for applications in networking, industrial automation, and embedded systems requiring robust processing and connectivity. It operates within an ambient temperature range of -40°C to 105°C.
Additional Information
Series: QorIQ® LayerscapeRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 525-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 105°C |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | - |
| Supplier Device Package | 525-FCPBGA (19x19) |
| Ethernet | GbE (3) |
| USB | USB 2.0 (1), USB 3.0 + PHY |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | DDR3L, DDR4 |
| Graphics Acceleration | - |
| Display & Interface Controllers | - |
| Security Features | Secure Boot, TrustZone® |
| SATA | SATA 3Gbps (1) |
| Additional Interfaces | - |
