LS1012AXE7HKA
IC MPU QORIQ 800MHZ 211FCLGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

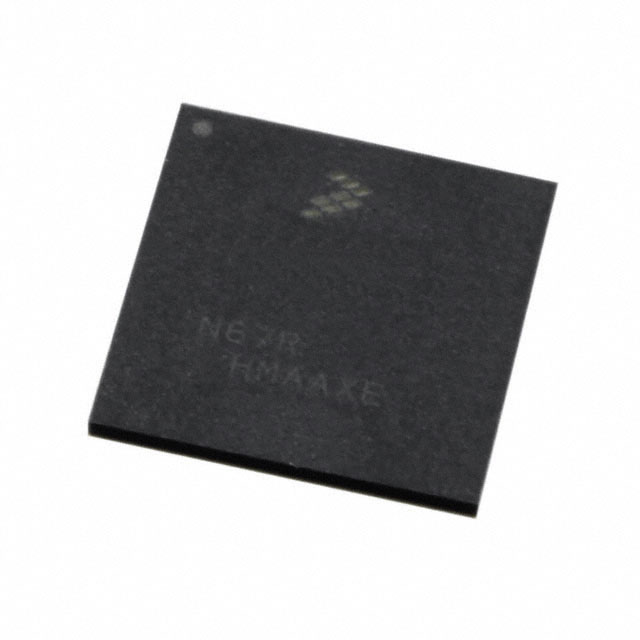

NXP USA Inc. LS1012AXE7HKA is a 64-bit, single-core ARM® Cortex®-A53 microprocessor from the QorIQ® Layerscape series, operating at 800MHz. This component features a 211-FCLGA (9.6x9.6) package for surface mounting. It includes integrated GbE Ethernet (2 ports), a SATA 6Gbps interface, and a USB 3.0 port with PHY, alongside USB 2.0 support. Memory support extends to DDR3L RAM controllers. Security features such as Secure Boot and TrustZone® are incorporated. The operating temperature range is -40°C to 105°C. This processor is suitable for applications in networking, industrial automation, and embedded systems.
Additional Information
Series: QorIQ® LayerscapeRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 211-VFLGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 105°C |
| Core Processor | ARM® Cortex®-A53 |
| Voltage - I/O | - |
| Supplier Device Package | 211-FCLGA (9.6x9.6) |
| Ethernet | GbE (2) |
| USB | USB 2.0 (1), USB 3.0 + PHY |
| Number of Cores/Bus Width | 1 Core, 64-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3L |
| Graphics Acceleration | - |
| Display & Interface Controllers | - |
| Security Features | Secure Boot, TrustZone® |
| SATA | SATA 6Gbps (1) |
| Additional Interfaces | - |
