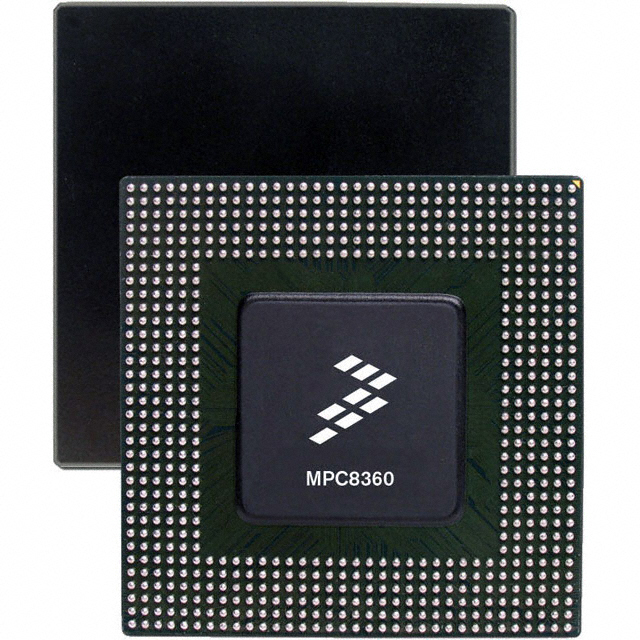

KMPC8360EVVAJDGA
IC MPU MPC83XX 533MHZ 740TBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC83xx series microprocessor, part number KMPC8360EVVAJDGA, is a 32-bit, single-core PowerPC e300 processor operating at 533MHz. This device features a 740-TBGA package with a 37.5x37.5mm footprint, suitable for surface mount applications. Enhanced functionality is provided by the integrated QUICC Engine for communications and SEC for security, including cryptography and random number generation. Connectivity options include DUART, HDLC, I2C, PCI, SPI, UART, 10/100/1000Mbps Ethernet, and USB 1.x. The processor supports DDR and DDR2 RAM controllers and offers I/O voltage flexibility with 1.8V, 2.5V, and 3.3V options. This component is commonly utilized in networking infrastructure, industrial control systems, and embedded computing platforms.
Additional Information
Series: MPC83xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 740-LBGA |
| Mounting Type | Surface Mount |
| Speed | 533MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e300 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 740-TBGA (37.5x37.5) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 1.x (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine, Security; SEC |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, HDLC, I2C, PCI, SPI, UART |
