FS32V232CKN1VUBR
IC MPU FS32V23 1GHZ 621FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. FS32V23 series microprocessor, part number FS32V232CKN1VUBR, is a high-performance processing unit featuring dual ARM® Cortex®-A53 cores operating at 1GHz. This device integrates an ARM® Cortex®-M4 co-processor and offers a comprehensive suite of peripherals including GbE, I2C, SPI, UART, and PCI interfaces. Display and interface control is managed by specialized blocks like APEX2-CL, DCU (2D-ACE), ISP, LCD, MIPICSI2, Video, and VIU. Memory support extends to DDR3, DDR3L, and LPDDR2 RAM controllers. Robust security features are implemented through AES, ARM TZ, Boot, CSE, OCOTP_CTRL, and System JTAG. Packaged in a 621-FCPBGA (17x17) with a surface mount type, this component operates within an industrial temperature range of -40°C to 125°C (TJ). It finds application in automotive and industrial automation sectors.
Additional Information
Series: FS32V23RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 621-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1GHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A53 |
| Voltage - I/O | 1V, 1.8V, 3.3V |
| Supplier Device Package | 621-FCPBGA (17x17) |
| Ethernet | GbE |
| USB | - |
| Number of Cores/Bus Width | 2 Core, 32/64-Bit |
| Co-Processors/DSP | ARM® Cortex®-M4 |
| RAM Controllers | DDR3, DDR3L, LPDDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | APEX2-CL, DCU (2D-ACE), ISP, LCD, MIPICSI2, Video, VIU |
| Security Features | AES, ARM TZ, Boot, CSE, OCOTP_CTRL, System JTAG |
| SATA | - |
| Additional Interfaces | I2C, SPI, PCI, UART |
Request a Quote
Clients Also Buy
FS32V234CON2VUB
IC MPU FS32V23 1GHZ 621FCPBGA

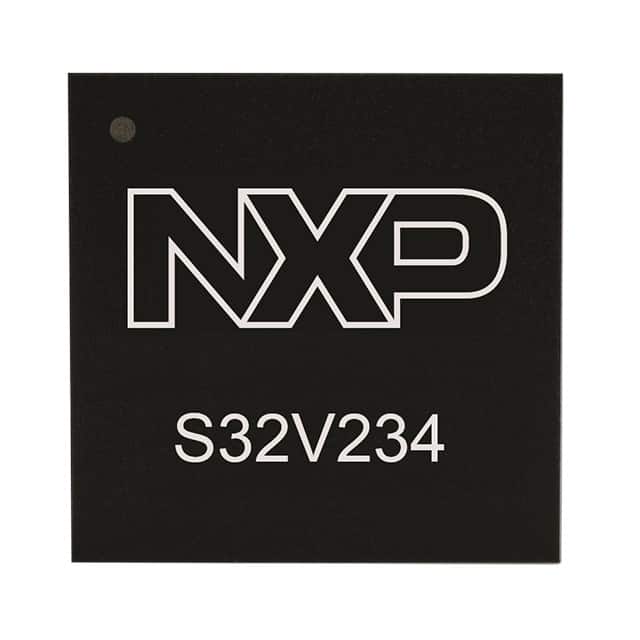

FS32V234CMN1VUB
