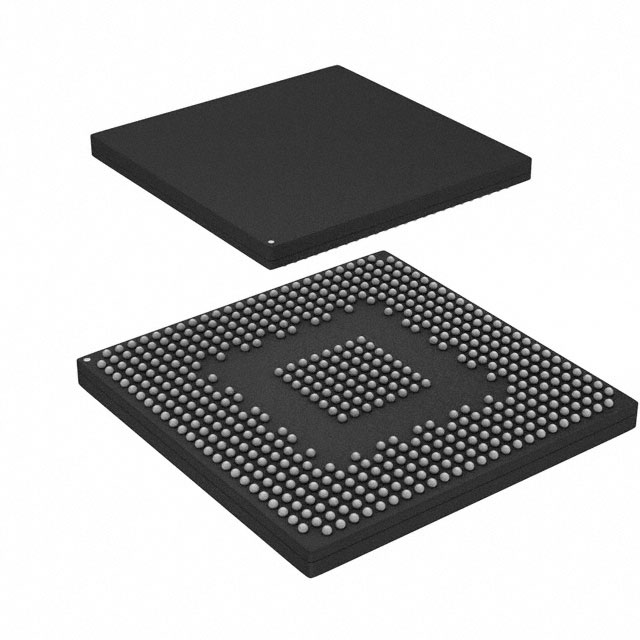

SPC5777CSK3MMO3
IC MCU 32BIT 8MB FLASH 516MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5777CSK3MMO3 is a 32-bit Tri-Core microcontroller from the MPC57xx series. Featuring the e200z7 core architecture, this device operates at a maximum frequency of 264MHz. It is equipped with 8MB of FLASH program memory and 512KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, and SPI. The microcontroller integrates advanced peripherals such as DMA, LVD, POR, and Zipwire, alongside data conversion capabilities with a 16-bit Sigma-Delta A/D converter and eQADC. The SPC5777CSK3MMO3 is supplied in a 516-MAPBGA (27x27) surface-mount package and operates within a temperature range of -40°C to 125°C. This component is suitable for applications in automotive, industrial control, and high-performance computing.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BGA |
| Mounting Type | Surface Mount |
| Speed | 264MHz |
| Program Memory Size | 8MB (8M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z7 |
| Data Converters | A/D 16b Sigma-Delta, eQADC |
| Core Size | 32-Bit Tri-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, SPI |
| Peripherals | DMA, LVD, POR, Zipwire |
| Supplier Device Package | 516-MAPBGA (27x27) |
| Programmable | Not Verified |
