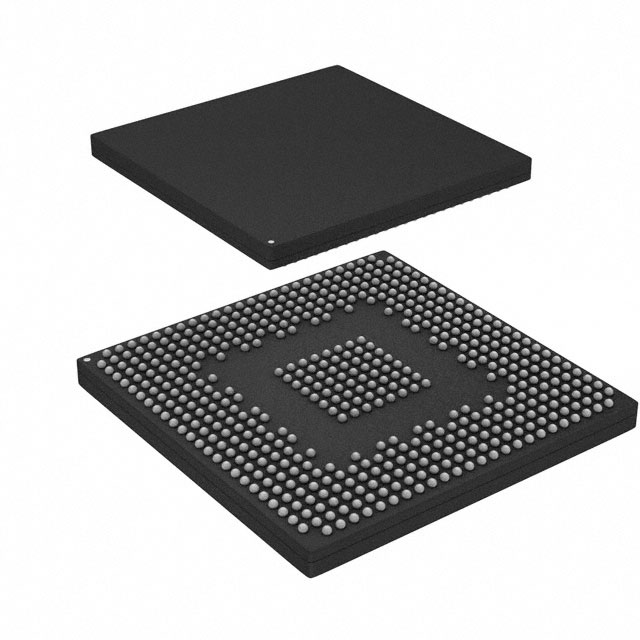

SPC5777CK2MMO3
IC MCU 32BIT 8MB FLASH 516MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx Series microcontroller, part number SPC5777CK2MMO3. This advanced 32-bit tri-core microcontroller features the e200z7 core architecture running at 264MHz. It offers 8MB of FLASH program memory and 512KB of RAM, providing substantial capacity for complex embedded applications. Connectivity options include EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, and SPI, enabling versatile communication interfaces. On-chip data conversion is supported by 16-bit Sigma-Delta and eQADC capabilities. Peripherals such as DMA, LVD, POR, and Zipwire are integrated for enhanced system control and management. The SPC5777CK2MMO3 is housed in a 516-MAPBGA (27x27) surface-mount package and operates within a temperature range of -40°C to 125°C (TA). This component is commonly utilized in automotive and industrial applications demanding high performance and robust connectivity.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 516-BGA |
| Mounting Type | Surface Mount |
| Speed | 264MHz |
| Program Memory Size | 8MB (8M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z7 |
| Data Converters | A/D 16b Sigma-Delta, eQADC |
| Core Size | 32-Bit Tri-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, SPI |
| Peripherals | DMA, LVD, POR, Zipwire |
| Supplier Device Package | 516-MAPBGA (27x27) |
| Programmable | Not Verified |
