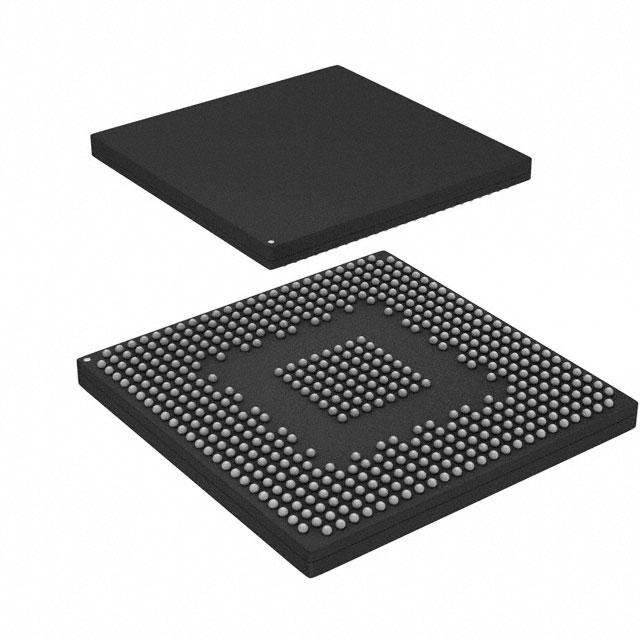

SPC5777CDK3MMO3R
IC MCU 32BIT 8MB FLASH 516MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx SPC5777CDK3MMO3R is a 32-bit tri-core microcontroller featuring the e200z7 core. This automotive-grade device operates at 264MHz and offers 8MB of FLASH program memory with an 8M x 8 organization. It includes 512KB of RAM and a variety of peripherals such as DMA, LVD, POR, and Zipwire. Connectivity options are extensive, including CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, and SPI. Data conversion capabilities include 16-bit Sigma-Delta A/D and eQADC. The SPC5777CDK3MMO3R is supplied in a 516-MAPBGA (27x27) surface mount package and operates across a temperature range of -40°C to 125°C (TA). This component is typically utilized in automotive applications, including powertrain control and body electronics.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 516-BGA |
| Mounting Type | Surface Mount |
| Speed | 264MHz |
| Program Memory Size | 8MB (8M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z7 |
| Data Converters | A/D 16b Sigma-Delta, eQADC |
| Core Size | 32-Bit Tri-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, SPI |
| Peripherals | DMA, LVD, POR, Zipwire |
| Supplier Device Package | 516-MAPBGA (27x27) |
| Programmable | Not Verified |
